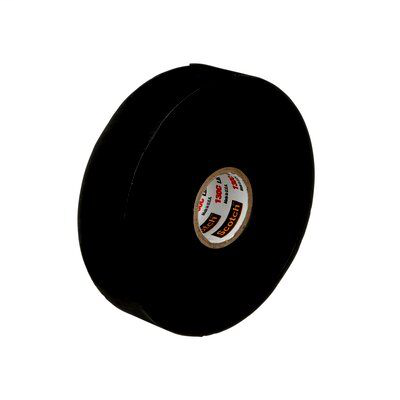

3M 130C-1x30FT Linerless Rubber Tape
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$25.33/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 130C-1X30FT
Crawford Part # 157

Features

  • Highly conformable, rubber-resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance
  • Provides an excellent thermal dissipation of splice heat
  • Scotch® Tape 130C is a linerless 30 mil thick, premium grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194 °F (90 °C) with emergency overload up to 266 °F (130 °C). The tape has excellent electrical and mechanical properties to provide moisture seal protection.
  • Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
  • Scotch® Tape 130C is a highly conformable tape that provides electrical and mechanical protection with the combination of an aggressive rubber resin adhesive and a self fusing, ethylene propylene backing. The tape provides primary insulation for solid, dielectric insulated cables rated through 69 kV. This tape is designed for low and high voltage, bus bar insulation, end sealing of cables and jacket repair applications. It has outstanding mechanical and electrical properties that offer moisture seal and void free buildups. ASTM Approved and RoHS 2011/65/EU Compliant.
  • Withstands temperatures up to 194 °F (90 °C)
  • ASTM Approved and RoHS 2011/65/EU Compliant

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80610833750
  • Adhesion to Steel: N/A
  • Adhesive Material: Rubber Resin
  • Agency Approvals: ASTM D-4325 || ASTM D-4388 Type 1, 2 & 3 || HH-I-553C
  • Application: Insulation
  • Application/Industry: Appliance and Fixture || Commercial Construction || Communications || Industrial Construction || Maintenance and Repair Operations || Mining || Solar || Utility || Wind Power
  • Backing Material: Ethylene Propylene Rubber || Ethylene Rubber
  • Backing Thickness (Metric): 0.76 || 0.76 mm
  • Brand: Scotch®
  • Breaking Strength (Imperial): 7.5 lb/in
  • Case Quantity: 24 Rolls
  • Color Family: Black
  • Dielectric Strength: 750 V/mil
  • Elongation: 850 || 850 %
  • Elongation at Break: 850%
  • Emergency Overload Temperature (Celsius): 130°C
  • Emergency Overload Temperature (Fahrenheit): 266°F
  • Family: Scotch® Linerless Rubber Splicing Tape 130C
  • High Temperature Rating: 194°F (90°C)
  • Insulated: Yes
  • Insulation Resistance: >10^15 Ohm
  • Liner/Linerless: Linerless
  • Manufacturing Origin: USA
  • Material: Linerless EPR
  • Maximum Operating Temperature (Celsius): 90 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 194 Degree Fahrenheit
  • Minimum Order Quantity: 1 Roll
  • National Stock Number: 5970012901623, 5970013359128
  • Operating Temperature (Celsius): Up to 90 °C
  • Operating Temperature (Fahrenheit): Up to 194 °F
  • Operating Temperature Range (Celsius): 0 °C to 90 °C
  • Overall Length (Imperial): 30 || 30 ft
  • Overall Length (Metric): 9.1 || 9.1 m
  • Overall Thickness (Imperial): 30 mil
  • Overall Thickness (Metric): 0.762 mm
  • Overall Width (Imperial): 1 || 1 in
  • Overall Width (Metric): 25 || 25.4 mm
  • Product Color: Black
  • Product Type: Rubber and Splicing Tapes
  • Rolls per Carton: 1
  • Rolls per Case: 24
  • Self-extinguishing: No
  • Self-sticking: Yes
  • Shelf Life: 5 || 5 Year
  • Shelf Life in Months (From Date of Manufacture): 60
  • Specifications: ASTM D-4388 Type 1, 2 & 3 || HH-I- 553C
  • Specifications Met: ASTM D-4325 || ASTM D-4388 Type 1, 2 & 3 || HH-I-553C
  • Suitable for High Voltage: Yes
  • Tape Color: Black
  • Tape Grade: Premium
  • Tape Length (Metric): 9.1 m
  • Tape Type: Professional Grade Rubber Tape
  • Tape Width (Imperial): 1 in
  • Tape Width (Metric): 25.4 mm
  • Tensile Strength (Imperial): 250 psi
  • Tensile Strength (Metric): 1723 || 1723 kg
  • UV Resistant: Yes
  • Voltage Application: High Voltage
  • Voltage Rating: 69 kV
  • Vulcanizing: Yes

Overview

UPC 05400741753
Product Description Scotch® Tape 130C is a linerless 30 mil thick, premium grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194 °F (90 °C) with emergency overload up to 266 °F (130 °C). The tape has excellent electrical and mechanical properties to provide moisture seal protection.
MDM Pkg GTiN 00054007417538
Length 30 ft
Width 1 in
Size 1 in x 30 ft
Color Black
Type linerless Ethylene Propylene Rubber
Thickness 30 mil
Material Ethylene Propylene Rubber
Backing Material Ethlylene Propylene Rubber
Applications High Voltage
Temperature Rating 0 - 90 C
Family Brand Name Scotch
Tensile Strength 250 Pound-Force Per Square Inch
Sub Brand Scotch
Max Operating Temperature 194 degrees F
Overall Length 30 ft
