Overview

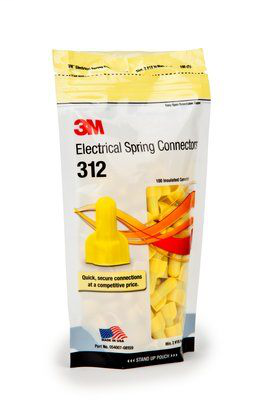

3M™ Electrical Spring Connector 312 is used to connect 2 or more copper conductors in a pigtail application. Its nylon construction provides a flame-retardant property to the connector, making it ideal for use in applications that require safety. The spring design allows them to spin on quickly and tighten down easily.
3M™ Electrical Spring Connector 312 delivers uniform holding power for reliable electrical connections. Wings enable easy, high torque installation. The spring inside the connector has a durable steel construction with a corrosion-resistant coating. It offers enough space to accommodate a wide range of solid or stranded copper wires. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
- Used for connecting and insulating wires in a pigtail application
- Twist-on type for quick connection
- Used for appliances and fixtures, automotive and marine, commercial construction, industrial construction and residential construction
- Delivers uniform holding power
- Accommodates a range of 22 to 10 AWG copper conductors
- Yellow flame-retardant nylon construction
- Withstands temperatures up to 221 degrees F (105 degrees C)
- 300V- or 600V-rated depending on wire combination for copper conductors and 1000V-rated for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- 100/pouch
Specifications
- 3M ID: 80611467434
- Agency Approvals: UL, IEC, and CSA
- Brand: 3M
- Color: Yellow
- Conductor Sizes: 22 - 8 AWG
- Connection Type: Wire
- Connector Style: Twist On
- Family: 3M™ Electrical Spring Connector
- Flame Retardant: Yes
- Maximum Operating Temperature (Celsius): 105 Degree Celsius
- Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
- Maximum Recommended Voltage Rating: 600 V
- Maximum Wire Gauge: 8 AWG
- Minimum Wire Gauge: 22 AWG
- Packaging: Pouch
- Product Family: 3M™ Electrical Spring Connector
- Product Type: Connector
- RoHS 2011/65/EU Compliant: Yes
- RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
- Trademark: 3M
Legal Disclaimer
- Manufacturing Origin: USA
- The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
- Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.
