3M 5302 (3 Splices/Kit) Motor Lead Splicing Kit
$74.11/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5302
Crawford Part # 215

Features

  • Splices motor lead cables to incoming feeder cables

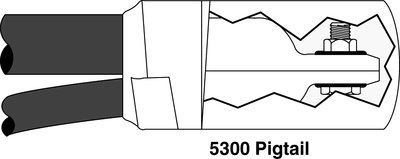

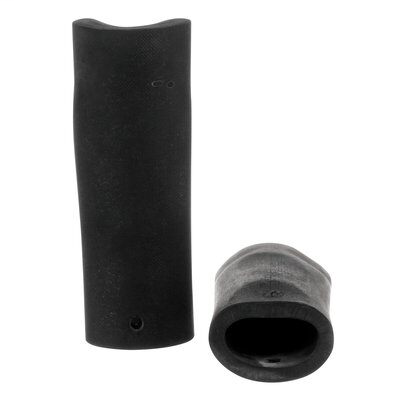

  • 3M™ Motor Lead Pigtail Splicing Kits 5300 Series are designed for splicing motor lead cables to incoming feeder cables, including the accommodation of pigtail (stub) connections at 1000 volts and less. The splice’s main component, the slip-on lug cover, is made from EPDM rubber. Mastic strips are used for the moisture seal. These kits are designed to be used with copper compression, one-hole lugs. After being crimped onto the cables, the lugs are bolted together in a pigtail configuration, then insulated and sealed with the 3M Motor Lead Splicing Kit. Each kit makes three splices and contains the necessary materials (except lugs) needed to make three splices. The lugs must be purchased separately. 3M™ Scotchlok™ Copper Compression Lugs 30000 Series, or other UL listed copper lugs, can be used. Kit contents include: • (3) Pigtail lug covers • (3) Mastic sealing strips • (3) Locking pins (kits 5302–5304 only) • (3) Tubes of silicone grease • (1) Instruction sheet
  • Designed to use with copper compression, 1-hole lugs
  • Slip-on lug cover is made of durable EPDM rubber
  • For pigtail (stub) connections at 1000V or less
  • Includes 3 each of pigtail lug covers, mastic sealing strips, and tubes of silicone grease, plus an instruction sheet
  • CSA Certified and RoHS 2011/65/EU Compliant‎

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80008006423
  • Agency Approvals: CSA Certified
  • Application: Cross Linked Polyethylene Cable || Ethylene Propylene Rubber Cable || For Insulating and Sealing Motor Lead Connections for Copper Conductors || Polyethylene Cable
  • Application/Industry: Commercial Construction || Industrial Construction
  • Brand: 3M™
  • Cable Shielding: Single Conductor Cable
  • Color Family: Black
  • Connection Type: Pigtail (Non-Shielded)
  • Family: 5300
  • Insulation Outside Diameter: 0.34-0.54 Inch
  • Insulation Outside Diameter Range: 0.34-0.54 in
  • Insulation Outside Diameter Range (Metric): 8.6 - 13.7 mm
  • Kit Includes: (3) Pigtail Lug Covers
  • Lug Cover Inner Diameter: 0.95 in
  • Lug Cover Inner Diameter (Metric): 24.1 mm
  • Lug Cover Length: 4.2 in
  • Lug Cover Length (Metric): 106.7 mm
  • Manufacturing Origin: USA
  • Maximum Bolt Length: 3/4 in
  • Maximum Bolt Length (Metric): 19.1 mm
  • Maximum Feeder Lead Size: 1/0 AWG
  • Maximum Motor Lead Size: 1/0 AWG
  • Maximum Operating Voltage: 1 kV
  • Product Color: Black
  • Range Feeder Cable (AWG & kcmil): 2-1/0
  • Splice Type: Pigtail Only
  • Voltage: 1 kV and less

Overview

UPC 05400712264
Product Description Each kit makes three splices. Lugs not included in kits. Feeder of 2-1/0 AWG (35-50 sq mm), motor lead 4-1/0 AWG (25-50 sq mm).
MDM Pkg GTiN 00054007122647
Voltage 1000 Volt
Type Pigtail Splice
Cable Size 2. - 0
Connection Type Pigtail
Family Brand Name 3M
Color Black
