3M 5316 (3 Splices/Kit) Motor Lead Splicing Kit

Features

• Designed for use with copper compression, 1 or 2 hole lugs
• 3M™ Motor Lead Inline Splicing Kits 5316-5319 Series are designed for splicing motor lead cables to incoming feeder cables, including the accommodation of inline connections at 1000 volts and less. The splice’s main component, the slip on splice cover, is made from EPDM rubber. A mastic strip is used for the moisture seal.
• Has a durable EPDM rubber construction

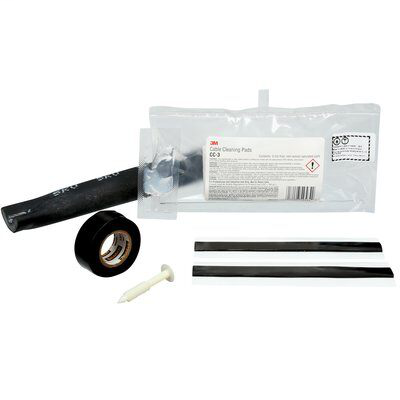

• 3M™ 5300 Series Motor Lead Pigtail Splice Kit contains 3 each of pigtail lug covers, locking pins, mastic sealing strips, silicone grease tubes, solvent cleaning cloths, splicing tape 130C strips and more. This non shielded splice kit features a slip on splice cover that is made of a durable EPDM rubber while mastic strips are used for moisture seal applications. It includes high dielectric constant stress control for reducing the size and electrical stress. This kit is perfect for splicing polyethylene/cross linked cable, ethylene propylene rubber cable, copper conductors and more. CSA Certified and RoHS 2011/65/EU Compliant‎.

Legal Disclaimer

• The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
• Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

• 3M ID: 80610735468
• Brand: 3M™

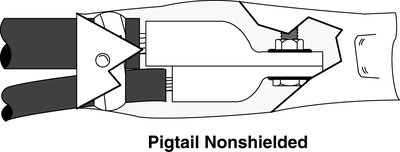

• Connection Type: Pigtail (Non-Shielded)
• Insulation Outside Diameter: 0.30-0.51 Inch
• Insulation Outside Diameter Range: 0.30-0.51 in
• Insulation Outside Diameter Range (Metric): 7.6-13.0 mm
• Lug Cover Length: 8 in
• Lug Cover Length (Metric): 20.32 mm
• Lug Length: 8.0 in
• Lug Length (Metric): 20.32 cm
• Manufacturing Origin: USA
• Maximum Bolt Length: 1/2 in
• Maximum Bolt Length (Metric): 12.7 mm
• Maximum Feeder Lead Size: 4 AWG
• Maximum Motor Lead Size: 4 AWG
• Maximum Operating Voltage: 8 kV
• Range Feeder Cable (AWG & kcmil): 8-4
• Splice Type: Pigtail Only
• Voltage: 5 - 8 kV
