3M 5318 (3 Splices/Kit) Motor Lead Splicing Kit
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5318
Crawford Part # 220


3M™ 5300 Series Motor Lead Pigtail Splice Kit is perfect to use with copper compression and 2-hole lugs. This non-shielded splice kit is designed to splice wet/dry, motor lead cables to the incoming feeder cables. This kit is rated for 5/8 to 1 kV-rated applications.

3M™ 5300 Series Motor Lead Pigtail Splice Kit contains 3 each of pigtail lug covers, locking pins, mastic sealing strips, silicone grease tubes, solvent cleaning cloths, splicing tape 130C strips and more. This non-shielded splice kit features a slip-on splice cover that is made of a durable EPDM rubber while mastic strips are used for moisture-seal applications. It includes high dielectric-constant stress control for reducing the size and electrical stress. This kit is perfect for splicing polyethylene/cross-linked cable, ethylene propylene rubber cable, copper conductors and more. CSA Certified and RoHS 2011/65/EU Compliant‎.

  • Features non-shielded, wet or dry-type cable/shielding
  • Designed for splicing motor lead cables to the incoming feeder cables
  • Suitable for use with 30000 Series copper compression lugs or other UL Listed copper lugs
  • 0.53 to 0.88-in O.D. insulation
  • Accommodates wire size of 1/0 AWG to 250 kcmil
  • Rated for 5/8 to 1 kV applications

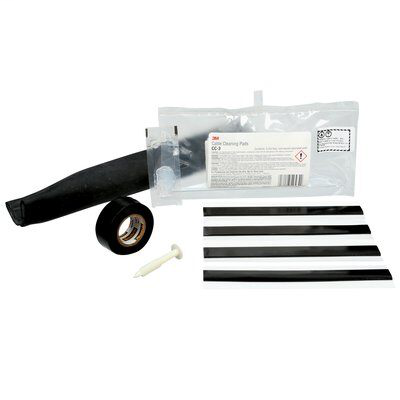

  • Includes 3 pigtail lug covers, 3 Scotch® linerless rubber splicing tape 130C strips, 3 instruction sheets and more
  • Withstands temperatures of 194 degrees F (90 degrees C)
  • CSA Certified and RoHS 2011/65/EU Compliant
  • 1 kit/case


  • 3M ID: 80610735484
  • Brand: 3M

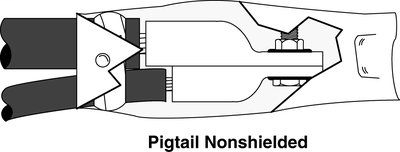

  • Connection Type: Pigtail (Non-Shielded)
  • Insulation Outside Diameter: 0.53-0.88 Inch
  • Insulation Outside Diameter Range: 0.53-0.88 in
  • Range Feeder Cable (AWG & kcmil): 1/0-250
  • Range Motor Lead (AWG & kcmil): 2-250
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Trademark: 3M
  • Voltage: 5 - 8 kV

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.


UPC 05400708315
Product Description Fast and simple installationNo torches or heat source needed to installThick walls to resist puncture and abrasion damageEasy Re-entryContains all materials required to make three splices (excluding lugs)
MDM Pkg GTiN 00054007083153
Color Black
Operating Temperature 90C
Voltage 8 kV
Type Motor Lead Pigtail Splice
Connection Type Pigtail
Family Brand Name 3M
