3M 5319 (3 Splices/Kit) Motor Lead Splicing Kit
$328.22/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5319
Crawford Part # 221

Overview

These kits are designed to be used with copper compression, one- or two-hole lugs. After being crimped onto the cables, the lugs are bolted together in a pigtail configuration, then insulated and sealed with the 3M Motor Lead Splicing Kit. Each kit contains all the necessary materials (except lugs) needed to make three splices. The lugs must be purchased separately. 3M Scotchlok 30000 Series copper compression lugs, or other UL listed copper lugs, can be used.

Specifications

  • Voltage: 5/8 kV
  • RoHS 2011/65/EU Compliant: Yes

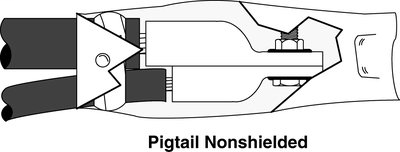

  • Connection Type: Pigtail (Non-Shielded)
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Trademark: 3M
  • Range Feeder Cable (AWG & kcmil): 250-500
  • Range Motor Lead (AWG & kcmil): 4/0-500

Documents

Overview

UPC 05400708316
Product Description Fast and simple installationNo torches or heat source needed to installThick walls to resist puncture and abrasion damageEasy Re-entryContains all materials required to make three splices (excluding lugs)
MDM Pkg GTiN 00054007083160
Color Black
Operating Temperature 90 C
Voltage 5/8 kV
Type Motor Lead Pigtail Splice
Family Brand Name 3M
Conductor Size 4/0 AWG - 500 kcmil
Applications Round Conductors, Solid Cores
Temperature Rating 90 C
Connection Type Pigtail
