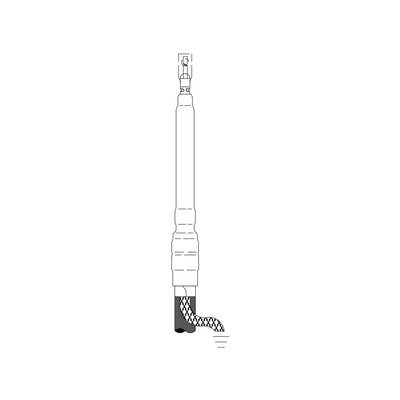

3M 7621-T-95 Cold Shrink 3 Terms/Kit Non-Skirted Termination Kit

Features

• Provides a void-free seal to tape shield, wire shield and UniShield® power cables
• High dielectric-constant material regulates the distribution of electric field stress
• 3M™ Cold Shrink QT-III Silicone Rubber Termination Kit 7620-T and 7690-T Series contains one-piece, non-skirted, silicone rubber terminations, meets IEEE Standard 48 Class 1 for indoor and weather-protected applications. The kits are designed for terminating solid dielectric shielded power cable rated 5–35 kV, with tape shield, wire shield and UniShield® constructions.
• Each kit contains sufficient quantities of material to make three single-phase terminations. The termination assemblies consist of a tubular insulator, high dielectric constant (Hi-K) stress control tube, conformable Hi-K stress controlling compound, and built-in environmental top seal. The insulator is made of a dark gray silicone rubber with advanced tracking resistant and hydrophobic properties. Note: Lugs need to be ordered separately. Exceptions: For T-150 Kits, 150 kV impulse level meets the impulse requirements for 35 kV class equipment where indoor terminations are used. 7620-T Kits are designed and assembled with stress controlling compound only.
• Suitable for indoor applications
• Non-tracking, molded, silicone rubber insulation offers durability
• Includes 3 non-skirted, 1-piece, 3-phase, cold shrink terminations

Legal Disclaimer

• The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
• Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

• 3M ID: 80611450448
• Agency Approvals: IEEE
• Brand: 3M™
• Breakout Boot: No
• Cable Insulation Outside Diameter Range: 0.44-0.89 in
• Cable Insulation Outside Diameter Range (Metric): 11.2-22.6 mm
• Cable Shielding: Tape Over Wire || Tape Shield || UniShield® || Wire Shield || Wire-Over-Tape Shield
• Case Quantity: 1
• Conductor Size by Voltage: (5 kV) 2-3/0 AWG, (8 kV) 4-2/0 AWG
• Conductor Sizes: 1 AWG || 1/0 AWG || 2 AWG || 2/0 AWG || 3/0 AWG || 4 AWG
• Family: QT-III
• Indoor/Outdoor: Indoor
• Insulation Level: 100% || 133%
• Insulation Outer Diameter (Imperial): 0.44 in || 0.45 in || 0.46 in || 0.47 in || 0.48 in || 0.49 in || 0.5 in || 0.51 in || 0.52 in || 0.53 in || 0.54 in || 0.55 in || 0.56 in || 0.57 in || 0.58 in || 0.59 in || 0.6 in || 0.61 in || 0.62 in || 0.63 in || 0.64 in || 0.65 in || 0.66 in || 0.67 in || 0.68 in || 0.69 in || 0.7 in || 0.71 in || 0.72 in || 0.73 in || 0.74 in || 0.75 in || 0.76 in || 0.77 in || 0.78 in || 0.79 in || 0.8 in || 0.81 in || 0.82 in || 0.83 in || 0.84 in || 0.85 in || 0.86 in || 0.87 in || 0.88 in || 0.89 in
• Insulation Outer Diameter (Metric): 11.176 mm || 11.43 mm || 11.684 mm || 11.938 mm || 12.192 mm || 12.446 mm || 12.7 mm || 12.954 mm || 13.208 mm || 13.462 mm || 13.716 mm || 13.97 mm || 14.224 mm || 14.478 mm || 14.732 mm || 14.986 mm || 15.24 mm || 15.494 mm || 15.748 mm || 16.002 mm || 16.256 mm || 16.51 mm || 16.764 mm || 17.018 mm || 17.272 mm || 17.526 mm || 17.78 mm || 18.034 mm || 18.288 mm || 18.542 mm || 18.796 mm || 19.05 mm || 19.304 mm || 19.558 mm || 19.812 mm || 20.066 mm || 20.32 mm || 20.574 mm || 20.828 mm || 21.082 mm || 21.336 mm || 21.59 mm || 21.844 mm || 22.098 mm || 22.352 mm || 22.606 mm
• Insulation Rejacketing: No
• Lug/Stem Connector Included in Kit: No
• Manufacturing Origin: USA
• Maximum Installed Length: 8.50 in
• Number of Conductors: 1
• Number of Skirts: 0
• Voltage: 5 kV || 8 kV || 8.7 kV
• Voltage Application: Medium Voltage
