3M 7622-T-110 Cold Shrink 3 Terms/Kit Non-Skirted Termination Kit

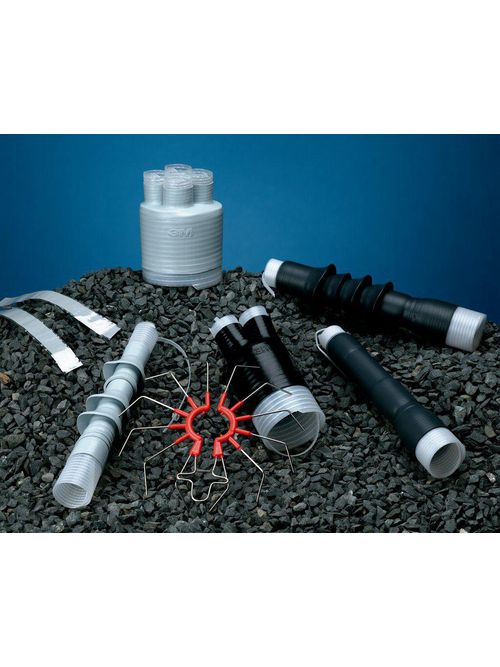

Product image thumbnail 0
Product image thumbnail 1
$446.96/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 7622-T-110
Crawford Part # 238

Features

  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • 3M™ Cold Shrink QT-III Silicone Rubber Termination Kit 7620-T and 7690-T Series contains one-piece, non-skirted, silicone rubber terminations, meets IEEE Standard 48 Class 1 for indoor and weather-protected applications. The kits are designed for terminating solid dielectric shielded power cable rated 5–35 kV, with tape shield, wire shield and UniShield® constructions.
  • High dielectric-constant material regulates the distribution of electric field stress
  • Each kit contains sufficient quantities of material to make three single-phase terminations. The termination assemblies consist of a tubular insulator, high dielectric constant (Hi-K) stress control tube, conformable Hi-K stress controlling compound, and built-in environmental top seal. The insulator is made of a dark gray silicone rubber with advanced tracking resistant and hydrophobic properties. Note: Lugs need to be ordered separately. Exceptions: For T-150 Kits, 150 kV impulse level meets the impulse requirements for 35 kV class equipment where indoor terminations are used. 7620-T Kits are designed and assembled with stress controlling compound only.
  • Suitable for indoor applications
  • Non-tracking, molded, silicone rubber insulation offers durability
  • Includes 3 non-skirted, 1-piece, 3-phase, cold shrink terminations

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80610834097
  • Agency Approvals: IEEE
  • Brand: 3M™
  • Breakout Boot: No
  • Cable Insulation Outside Diameter Range: 0.64-1.08 in
  • Cable Insulation Outside Diameter Range (Metric): 16.3-27.4 mm
  • Cable Shielding: Tape Shield || UniShield® || Wire Shield
  • Case Quantity: 1
  • Conductor Size by Voltage: (5 kV) 4/0 AWG-400 kcmil, (8 kV) 3/0 AWG-300 kcmil, (15 kV) 2-4/0 AWG
  • Conductor Sizes: 1 AWG || 1/0 AWG || 2 AWG || 2/0 AWG || 250 kcmil || 3/0 AWG || 300 kcmil || 350 kcmil || 4/0 AWG || 400 kcmil
  • Family: QT-III
  • Indoor/Outdoor: Indoor Non-skirted
  • Insulation Level: 100% || 133%
  • Insulation Outer Diameter (Imperial): 0.64 in || 0.65 in || 0.66 in || 0.67 in || 0.68 in || 0.69 in || 0.7 in || 0.71 in || 0.72 in || 0.73 in || 0.74 in || 0.75 in || 0.76 in || 0.77 in || 0.78 in || 0.79 in || 0.8 in || 0.81 in || 0.82 in || 0.83 in || 0.84 in || 0.85 in || 0.86 in || 0.87 in || 0.88 in || 0.89 in || 0.9 in || 0.91 in || 0.92 in || 0.93 in || 0.94 in || 0.95 in || 0.96 in || 0.97 in || 0.98 in || 0.99 in || 1 in || 1.01 in || 1.02 in || 1.03 in || 1.04 in || 1.05 in || 1.06 in || 1.07 in || 1.08 in
  • Insulation Outer Diameter (Metric): 16.256 mm || 16.51 mm || 16.764 mm || 17.018 mm || 17.272 mm || 17.526 mm || 17.78 mm || 18.034 mm || 18.288 mm || 18.542 mm || 18.796 mm || 19.05 mm || 19.304 mm || 19.558 mm || 19.812 mm || 20.066 mm || 20.32 mm || 20.574 mm || 20.828 mm || 21.082 mm || 21.336 mm || 21.59 mm || 21.844 mm || 22.098 mm || 22.352 mm || 22.606 mm || 22.86 mm || 23.114 mm || 23.368 mm || 23.622 mm || 23.876 mm || 24.13 mm || 24.384 mm || 24.638 mm || 24.892 mm || 25.146 mm || 25.4 mm || 25.654 mm || 25.908 mm || 26.162 mm || 26.416 mm || 26.67 mm || 26.924 mm || 27.178 mm || 27.432 mm
  • Insulation Rejacketing: No
  • Lug/Stem Connector Included in Kit: No
  • Manufacturing Origin: USA
  • Maximum Installed Length: 12.00 in
  • Number of Conductors: 1
  • Voltage: 15 kV || 5 kV || 8 kV
  • Voltage Application: Medium Voltage

Overview

UPC 05400741760
Product Description Quick installation with versatile one-piece designNo torches, heat or special tools requiredHi-K stress controlExcellent tracking resistanceIncludes everything required to make 3 terminations (except lugs)
MDM Pkg GTiN 00054007417606
Voltage 8 kV
Type QT-III
Conductor Size 1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 250 MCM; 3/0 AWG; 300 MCM; 350 MCM; 4/0 AWG; 400 MCM
Applications For Indoor Non-Skirted
Cable Type Tape Shield; UniShield(R); Wire Shield
Family Brand Name 3M
Indoor Outdoor Indoor Non-skirted
Used With Connection of Paper with Plastic Insulated Cables
