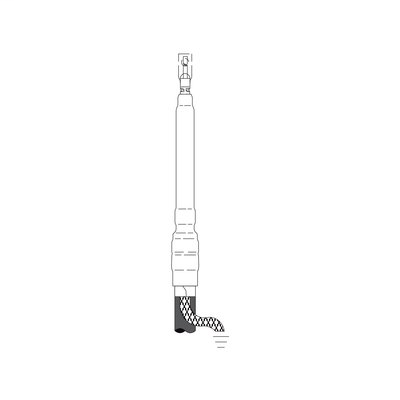

3M 7693-T-150 Cold Shrink 3 Terms/Kit Non-Skirted Termination Kit

Features

• Provides a void-free seal to tape shield, wire shield and UniShield® power cables
• 3M™ Cold Shrink QT-III Silicone Rubber Termination Kit 7620-T and 7690-T Series contains one-piece, non-skirted, silicone rubber terminations, meets IEEE Standard 48 Class 1 for indoor and weather-protected applications. The kits are designed for terminating solid dielectric shielded power cable rated 5–35 kV, with tape shield, wire shield and UniShield® constructions.
• High dielectric-constant material regulates the distribution of electric field stress
• Each kit contains sufficient quantities of material to make three single-phase terminations. The termination assemblies consist of a tubular insulator, high dielectric constant (Hi-K) stress control tube, conformable Hi-K stress controlling compound, and built-in environmental top seal. The insulator is made of a dark gray silicone rubber with advanced tracking resistant and hydrophobic properties. Note: Lugs need to be ordered separately. Exceptions: For T-150 Kits, 150 kV impulse level meets the impulse requirements for 35 kV class equipment where indoor terminations are used. 7620-T Kits are designed and assembled with stress controlling compound only.
• Suitable for indoor applications
• Non-tracking, molded, silicone rubber insulation offers durability
• Includes 3 non-skirted, 1-piece, 3-phase, cold shrink terminations

Legal Disclaimer

• The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
• Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

• 3M ID: 80610834279
• Agency Approvals: IEEE
• Brand: 3M™
• Breakout Boot: No
• Cable Insulation Outside Diameter Range: 0.72-1.29 in
• Cable Insulation Outside Diameter Range (Metric): 18.3-32.8 mm
• Cable Shielding: Tape Shield || UniShield® || Wire Shield
• Case Quantity: 1
• Compatible Lug: QL2-A-2-250
• Conductor Size by Voltage: (5 kV) 300-500 kcmil, (8 kV) 250-500 kcmil, (15 kV) 2/0 AWG-300 kcmil, (25/28 kV) 2-4/0 AWG, (35 kV) 2-2/0 AWG
• Conductor Sizes: 1 AWG || 1/0 AWG || 2 AWG || 2/0 AWG || 250 kcmil || 3/0 AWG || 300 kcmil || 350 kcmil || 4/0 AWG || 400 kcmil || 500 kcmil
• Family: QT-III
• Indoor/Outdoor: Indoor Non-skirted
• Insulation Level: 100% || 133%
• Insulation Outer Diameter (Imperial): 0.72 in || 0.73 in || 0.74 in || 0.75 in || 0.76 in || 0.77 in || 0.78 in || 0.79 in || 0.8 in || 0.81 in || 0.82 in || 0.83 in || 0.84 in || 0.85 in || 0.86 in || 0.87 in || 0.88 in || 0.89 in || 0.9 in || 0.91 in || 0.92 in || 0.93 in || 0.94 in || 0.95 in || 0.96 in || 0.97 in || 0.98 in || 0.99 in || 1 in || 1.01 in || 1.02 in || 1.03 in || 1.04 in || 1.05 in || 1.06 in || 1.07 in || 1.08 in || 1.09 in || 1.1 in || 1.11 in || 1.12 in || 1.13 in || 1.14 in || 1.15 in || 1.16 in || 1.17 in || 1.18 in || 1.19 in || 1.2 in || 1.21 in || 1.22 in || 1.23 in || 1.24 in || 1.25 in || 1.26 in || 1.27 in || 1.28 in || 1.29 in
• Insulation Outer Diameter (Metric): 18.288 mm || 18.542 mm || 18.796 mm || 19.05 mm || 19.304 mm || 19.558 mm || 19.812 mm || 20.066 mm || 20.32 mm || 20.574 mm || 20.828 mm || 21.082 mm || 21.336 mm || 21.59 mm || 21.844 mm || 22.098 mm || 22.352 mm || 22.606 mm || 22.86 mm || 23.114 mm || 23.368 mm || 23.622 mm || 23.876 mm || 24.13 mm || 24.384 mm || 24.638 mm || 24.892 mm || 25.146 mm || 25.4 mm || 25.654 mm || 25.908 mm || 26.162 mm || 26.416 mm || 26.67 mm || 26.924 mm || 27.178 mm || 27.432 mm || 27.686 mm || 27.94 mm || 28.194 mm || 28.448 mm || 28.702 mm || 28.956 mm || 29.21 mm || 29.464 mm || 29.718 mm || 29.972 mm || 30.226 mm || 30.48 mm || 30.734 mm || 30.988 mm || 31.242 mm || 31.496 mm || 31.75 mm || 32.004 mm || 32.258 mm || 32.512 mm || 32.766 mm
• Insulation Rejacketing: No
• Lug/Stem Connector Included in Kit: No
• Manufacturing Origin: USA
• Maximum Installed Length: 16.00 in
• Number of Conductors: 1
• Voltage: 15 kV || 25 kV || 35 kV || 5 kV || 8 kV
• Voltage Application: Medium Voltage
