3M 82-A2 Inline Resin Splicing Kits
Product image thumbnail 0
Product image thumbnail 1
$65.60/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 82-A2
Crawford Part # 255

Overview

Use the 3M Scotchcast Inline Resin Splice Kits 82-A Series to insulate and seal single conductor, unshielded cable splices through 5 kV and multiple conductor cables through 1 kV.

Number of Conductors:

· 1 for 5 kV

· Multiple for 1 kV

Specifications

  • Splice Type: Inline
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Product Series: 82-A Series
  • Voltage: 1 kV, 5 kV
  • Shielding Type: Single Conductor Portable Cable, Non-shielded, Multiple Conductor Portable Cable
  • RoHS 2011/65/EU Compliant: Yes
  • Conductor Sizes for 5 kV: 1/0 AWG, 2/0 AWG, 1 AWG, 3/0 AWG, 2 AWG
  • Trademark: Scotchcast
  • Product Technology: Resin
  • Insulation O.D. Range: 0.625 - 1.00 Inch
  • Product Type: Splice

Documents

Categories

Overview

UPC 05400725032

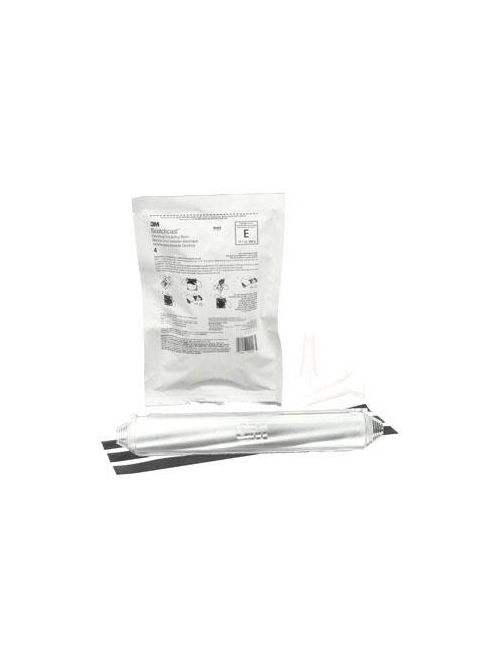

Product Description UL Listed for direct burial and submerged applications up to 600 volts and 90CRated to 5kV for inline splices on unshielded, synthetic insulated cablesRated to 1 kV for multiple conductor cablesUnshielded, synthetic insulated cablesEach kit contains one mold body, two pouring spouts, three strips of Scotch Rubber Splicing Tape 23 and one pack of 3M Scotchcast Electrical Insulating Resin 4
MDM Pkg GTiN 00054007250326
Voltage 1 kV
Standard UL
Family Brand Name 3M
Color Black
Material Epoxy
Conductor Size 2-3/0 AWG
Applications For Weather-Exposed or Direct Burial Locations
Sub Brand Scotchcast
