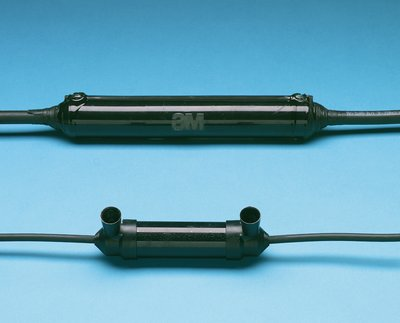

3M 82-A3 Inline Resin Splicing Kits
Product image thumbnail 0
Product image thumbnail 1
$101.39/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 82-A3
Crawford Part # 256

Overview

Use the 3M Scotchcast Inline Resin Splice Kits 82-A Series to insulate and seal single conductor, unshielded cable splices through 5 kV and multiple conductor cables through 1 kV.

Number of Conductors:

· 1 for 5 kV

· Multiple for 1 kV

Specifications

  • Product Technology: Resin
  • Voltage: 1 kV, 5 kV
  • Product Type: Splice
  • Trademark: Scotchcast
  • Shielding Type: Single Conductor Portable Cable, Non-shielded, Multiple Conductor Portable Cable
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Splice Type: Inline
  • Insulation O.D. Range: 1.00 - 1.563 Inch
  • Conductor Sizes for 5 kV: 250 kcmil, 3/0 AWG, 400 kcmil, 300 kcmil, 4/0 AWG, 350 kcmil
  • Product Series: 82-A Series

Documents

Categories

Overview

UPC 05400725040
Product Description 3M 82-AN Series Inline Resin Power Cable Splice Kit is designed to insulate and seal 5kV-rated unshielded, single conductor cables and 1 kV-rated multiple conductor cables. It is suitable for use in weather-exposed or direct-burial locations.
MDM Pkg GTiN 00054007250401
Color Black
Voltage 1 kV
Type Inline, Cast Resin
Material Epoxy
Conductor Size 3/0 AWG - 400 MCM
Applications Use in Weather-Exposed or Direct-Burial Locations
Standard UL
Family Brand Name 3M
Sub Brand Scotchcast
