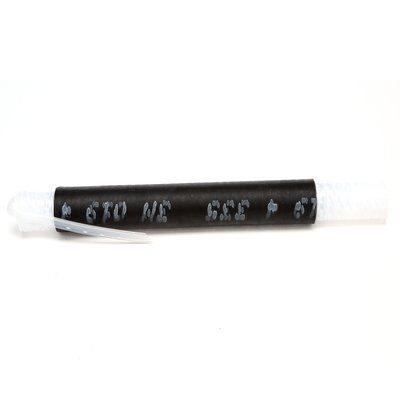

3M 8423-6 Cold Shrink Connector Insulators

Features

• Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
• Simple installation which requires no tools
• 3M™ Cold Shrink Connector Insulators 8420 and 8430 Series are designed using 3M’s proprietary cold shrink delivery system. Products are supplied prestretched on a removable core for efficiency and ease of installation. Removal of the core (unwinding) after positioning the splice allows the product to shrink into position forming a moisture-tight seal. The live memory action of the specially formulated EPDM material promotes a permanent, durable environmental seal and insulation, with a typical operating temperature range from -40–194°F (-40–90°C). The 8420 insulator meets requirements of ANSI C119-1 and Western Underground Guide 2.14 for secondary splices rated up to 1 kV. Applications: Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splicing rated to 1000 V. Good for repairs and environmental sealing for communication and other non-electrical applications. Important: Use insulation jacket or connector O.D. for final ordering criteria. * Mastic pads included for cable O.D. build-up. ** Kit contains adapters. *** These sizes are listed for availability only and are not designed to be used as primary insulation. These tubes are for conduit sealing and breakouts. ****Maximum connector length: 5.625” “Point of Purchase” packaging designated by “P”. Example: 8423-6P
• Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts
• Made of black EPDM rubber
• Made of EPDM rubber which contains no chlorides or sulfur
• Withstands temperatures of -40 to 194 degrees F (-40 to 90 degrees C)
• Environmental sealing for communication and other non-electrical applications

Legal Disclaimer

• The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
• Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

• 3M ID: 80610839484
• Application: Insulation, mechanical protection, repair
• Brand: 3M™
• Cable Shielding: Non-shielded || Tape Shield || UniShield® || Wire Shield
• Cable Type: Non-Shieled, Solid Dielectric Power Cable
• Case Quantity: 10
• Color Family: Black
• Conductor Material: Aluminum || Copper
• Conductor Size Range: 6-4 AWG
• Conductor Sizes: 4 AWG || 6 AWG
• Inner Diameter After Shrink (Imperial): 0.189 in
• Inner Diameter After Shrink (Metric): 4.8 mm
• Inner Diameter Before Shrink (Imperial): 0.669 in
• Inner Diameter Before Shrink (Metric): 17 mm
• Manufacturing Origin: USA
• Material: EPDM Rubber
• Maximum Connector Length: 2.0 in
• Maximum Connector Length (Metric): 50.8 mm
• Maximum Operating Temperature (Celsius): 90 Degree Celsius
• Maximum Operating Temperature (Fahrenheit): 194 Degree Fahrenheit
• Minimum Operating Temperature (Fahrenheit): -40 Degree Fahrenheit
• Number of Conductors: 1
• Operating Temperature (Celsius): -40 up to +90°C
• Overall Length (Imperial): 6 in
• Overall Length (Metric): 152.4 mm
• Product Color: Black
• Product Type: Splice
• Relaxed Tube Length: 6 in
• Relaxed Tube Length (Metric): 152.4 mm
• Shrink Ratio: 2:1
• Splice Type: Cold Shrink
• Voltage: 1 kV
• Voltage Application: Low Voltage
