Overview

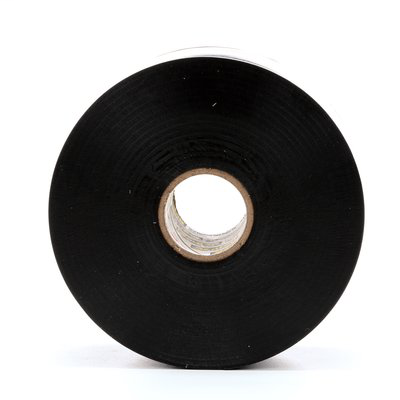

Scotch® Tape Super 88 is a 8.5-mil thick, premium-grade, all-weather, vinyl electrical tape that is designed to provide a protective jacket and primary electrical insulation for splices up to 600V. The flame-retardant tape withstands a temperature range of 0 to 221 degrees F (-18 to 105 degrees C).
Scotch® Tape Super 88 is an abrasion-resistant tape that provides electrical and mechanical protection with the combination of an aggressive rubber-resin adhesive and an elastic PVC backing. This tape is highly resistant to UV rays, moisture, alkalis, acids, corrosion and varying weather conditions. It is designed to provide protective jacket for low- and high-voltage bus applications. The tape is compatible with solid dielectric cable insulations, as well as epoxy and polyurethane resins. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
- The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers excellent electrical and mechanical protection
- Tape measures 1-1/2 in x 66 ft x 8.5 mil
- Made of black durable PVC
- Operating temperature range of 0° to 220°F (-18° to 105°C) exceeds most commercial-grade specifications
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- 12 rolls/case, BULK
Specifications
- 3M ID: 80610138986
- Adhesion to Steel: 2,7 N/cm
- Adhesive Material: Rubber Resin
- Adhesive Type: Rubber
- Agency Approvals: CSA Certified, UL Listed
- Applications: Electrical Maintenance
- Backing Material: Vinyl
- Backing Thickness (metric): 0.22 mm
- Brand: Scotch
- Breaking Strength: 20 lb/in
- Case Quantity: 100 Rolls
- Chemical Resistant: RoHS 2011/65/EU Compliant, Yes
- Color: Black
- Dielectric Strength: 1150 V/mil
- Dielectric Strength (V/mil): 1175 V/mil
- Elongation: 2.5 %
- Elongation at Break: 250%
- Family: Scotch® Vinyl Electrical Tape Super 88
- Flame Retardant: RoHS 2011/65/EU Compliant
- High Temperature Rating: 221°F (105°C)
- Insulated: RoHS 2011/65/EU Compliant, Yes
- Insulation Resistance: > 10^6 megohms
- Length: 36 Linear Yard
- Length (Metric): 33 m
- Low Temperature Rating: 0°F (-18°C)
- Material: PVC
- Maximum Operating Temperature (Celsius): 105 Degree Celsius
- Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
- National Stock Number: 5970006442636
- Operating Temperature (Celsius): Up to 105 Degree Celsius
- Operating Temperature Range (Celsius): -18 °C to 105 °C
- Operating Temperature Range (Fahrenheit): 0 °F to 220 °F
- Performance Level: Professional Grade
- Product Markets: Electrical Construction, Electrical Equipment Manufacturing, Electrical MRO, Power Distribution
- Product Type: Vinyl Electrical Tapes
- RoHS 2011/65/EU Compliant: RoHS 2011/65/EU Compliant, Yes
- RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
- Rolls per Carton: 1
- Rolls per Case: 12
- Self-Extinguishing: RoHS 2011/65/EU Compliant, Yes
- Self Sticking/Amalgamating: No, Sunlight Resistant
- Shelf Life: 5 Year
- Solution for: Wireless Network: Infrastructure Accessories
- Specifications: ASTM D-3005 type 2, Mil-I- 24391C, SS 404 09 75, VDE 0340 TEIL 3-1
- Suitable for High Voltage: No, Sunlight Resistant
- Tape Grade: Premium
- Tape Type: Vinyl
- Tape Width (metric): 38 mm
- Thickness: 8.5 mil
- Thickness (Metric): 0.22 mm
- Total Thickness: 0.22 mm
- Trademark: Scotch
- UL File Number: E129200
- UV Resistant: RoHS 2011/65/EU Compliant, Yes
- Voltage Application: Low Voltage
- Voltage Rating: 600 V
- Vulcanizing: No, Sunlight Resistant
- Width: 1.5 Inch
- Width (Metric): 38 mm
Legal Disclaimer
- Manufacturing Origin: USA
- The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
- Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.
