Overview

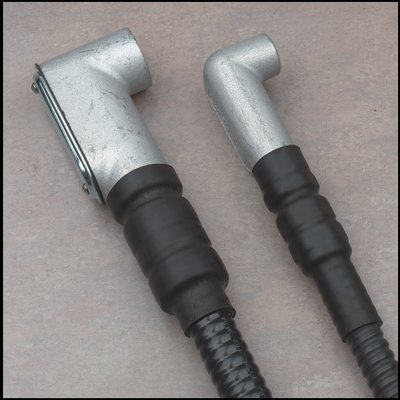

3M™ CPT Cold Shrink Corrosion Protection Kit is designed to provide a quick and simple method for protecting bulkhead termination connectors from wet and salt-fog installation environments. It is suitable for use in standard and hazardous locations.
3M™ CPT Cold Shrink Corrosion Protection Kit includes 1 insulator assembly, 1 mastic seal strip roll and 1 instruction sheet. It has an insulating sleeve that is made of EPDM rubber for a long-term seal. The mastic strips included in the kit offer a tight seal between the NPT fitting threads and the enclosure. RoHS 2011/65/EU Compliant.
- Designed to provide protection for bulkhead termination connectors
- Offers protection from wet and salt-fog installation environments
- Ideal for use in standard and hazardous locations
- Cable maximum installed length of 4.8 inches
- Cable Diameter Range 1.40 - 3.00 in (36 - 76 mm)
- Insulator is formulated with EPDM rubber which contains no chlorides or sulfur
- Provides tight sealing between NPT fitting threads and the enclosure using mastic strips
- Includes an insulator assembly, mastic seal strip pack and instruction sheet
- Salt spray tested and RoHS 2011/65/EU Compliant
- 10 kits/case
Specifications
- 3M ID: 80610980080
- Brand: 3M™
- Cable Accessory Products: Cold Shrink Corrosion Protection Kits
- Cable Minimum Outside Diameter: 1.22 in
- Connector Maximum Installed Length: 4.80 in
- Connector Maximum Outside Diameter: 2.65 in
- Maximum Cable Outside Diameter (metric): 31,0 mm
- RoHS 2011/65/EU Compliant: Yes
- RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
- Trademark: 3M
Legal Disclaimer
- Manufacturing Origin: USA
- The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
- Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.
