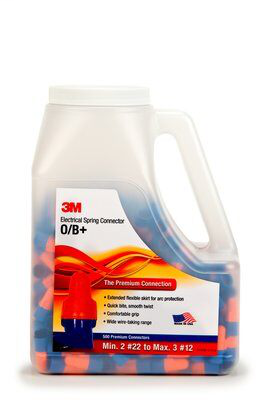

3M O/B+JUG 500/Jug Orange/Blue Spring Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$0.10/ea
ea
Adding...
Order in multiples of 500 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # O/B+JUG
Crawford Part # 359

Overview

The improved 3M O/B+ Connector will help electricians do more with less. The O/B+ connector combines a very small shell with an increased wire range. The improved spring bites wire quickly with less effort and accommodates from two #22 AWG wires up to three #12 AWG wires or four #14 AWG wires. The very small shell fits easily into tight spaces and its flexible skirt helps protect workers from contact with overstripped wires. With such a wide wire range, you can save money by buying fewer connectors. O/B + replaces the orange, blue and gray spring connector style connectors, as well as 70% of the yellow spring connector and wing style connectors. This simplifies selection of the right connector for a wide range of wiring jobs. There's also less inventory to manage, and a better chance you'll have the connector you need to do every job.

Specifications

  • Flame Retardant: Yes
  • Color: Orange/Blue
  • Minimum Wire Gauge: 22 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Boxes per Case: 20
  • Maximum Wire Gauge: 12 AWG
  • Trademark: 3M
  • Connection Type: Wire
  • Family: 3M Performance Plus Wire Connector
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Product Family: 3M Performance Plus Wire Connector
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Connector Style: Twist On
  • Agency Approvals: UL, CE, IEC, and CSA
  • Packaging: Jug
  • Conductor Sizes: 22 - 12 AWG
  • Product Type: Connector

Documents

Overview

UPC 05400743153
Product Description 2 #22 AWG up to 3 #12 AWG (solid) or 4 #14 AWG, Orange with Blue skirt, 500 per container, 10000 per case
MDM Pkg GTiN 00054007431534
Color Blue/Orange
Type Rounded Wing, Flame-Retardant
Conductor Size 22-12 AWG
Connection Type Wire
Temperature Rating 221 F
Family Brand Name 3M
Flame Retardant Yes
Tc Connection Twist On
Material Steel Spring
Insulation Material Polypropylene and Thermoplastic Elastomer
Max Operating Temperature 221 degrees F
Voltage 600/1000 Volt
