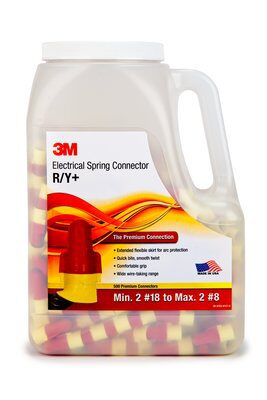

3M R/Y+JUG 500/Jug Red/Yellow Spring Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$0.13/ea
In Stock | 360246 available at 5 locations
ea
Adding...
Order in multiples of 500 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # R/Y+JUG
Crawford Part # 364

Overview

R/Y + replaces both red and yellow wing style connectors. This simplifies selection of the right connector for a wide range of wiring jobs. There's also less inventory to manage, and a better chance you'll have the connector you need to do every job.

Specifications

  • Product Family: 3M Performance Plus Wire Connector
  • Packaging: Jug
  • Maximum Recommended Voltage Rating: 600 V
  • Conductor Sizes: 22 - 8 AWG
  • Trademark: 3M
  • Color: Red/Yellow
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Maximum Wire Gauge: 8 AWG
  • Product Type: Connector
  • Boxes per Case: 8
  • Minimum Wire Gauge: 22 AWG
  • Connection Type: Wire
  • Connector Style: Twist On
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Agency Approvals: UL, CE, IEC, and CSA
  • Flame Retardant: Yes
  • RoHS 2011/65/EU Compliant: Yes
  • Family: 3M Performance Plus Wire Connector

Documents

Overview

UPC 05400743155
Product Description The 3M Performance Plus Wire Connector electrically connects two or more conductor ends in a pigtail application and insulates the connection. It combines a very small shell with an increased wire range. The spring bites wire quickly with less effort, and the small shell fits easily into tight spaces, while its flexible skirt helps protect workers from contact with over-stripped wires. This 3M Performance Plus connector is great for various conductor sizes; four #14, two #2 and three #8 AWG.
MDM Pkg GTiN 00054007431558
Color Red/Yellow
Type Wire
Material Plastic
Conductor Size 22 To 8 AWG
Connection Type Wire
Temperature Rating 221 F
Family Brand Name 3M
Flame Retardant Yes
Tc Connection Twist On
Max Operating Temperature 221 degrees F
Voltage 600/1000 Volt
