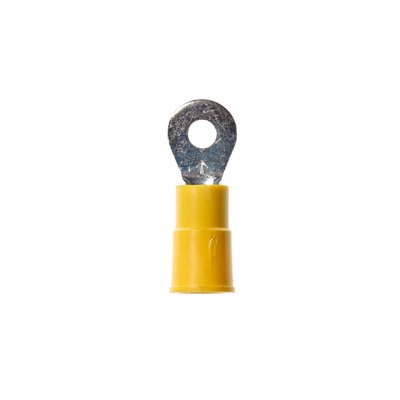

3M RV10-8Q 25/Bag Ring Vinyl Insulated Highland Bag
$8.86/ea
In Stock | 5 available at 1 location
bg
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # RV10-8Q
Crawford Part # 367

Features

  • Yellow vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 3M™ Highland™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • A ring is the standard style of tongue. The safest and most reliable; it cannot be removed unless mounting screw is removed.
  • Stud size #8
  • Accommodates wire sizes 12 to 10 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/bag

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611602980
  • Agency Approvals: UL and CSA
  • Barrel Length (Imperial): 0.25 Inch
  • Barrel Length (Metric): 6.35 mm
  • Barrel Style: Butted
  • Brand: Scotchlok™
  • Clearance (C): 0.29 Inch
  • Conductor Size: 12 - 10 AWG
  • Dimension E: 0.84 Inch
  • Insulation Material: Vinyl
  • Manufacturing Origin: USA
  • Material: Plastic
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 10 AWG
  • Minimum Stud Diameter (Imperial): 0.19 in
  • Minimum Stud Diameter (Metric): 5 mm
  • Minimum Wire Gauge: 12 AWG
  • Overall Length (Imperial): 1.03 in
  • Overall Length (Metric): 26.162 mm
  • Overall Width (Imperial): 0.38 in
  • Overall Width (Metric): 9.652 mm
  • Ring Type: Standard
  • Stud Size: #8
  • Terminal Style: Standard
  • Terminal Type: Ring

Overview

UPC 05112860037
Product Description This terminal accepts a wire range of 12-10, a stud size of 8 and a case quantity of 10 bags.
MDM Pkg GTiN 00051128600375
Color Yellow
Type Ring
Material Plastic
Wire Size 12-10 AWG
Family Brand Name Scotchlok
Terminal Size 8
Tc Connection Ring
Sub Brand Highland
Length 1.03 in
Width 0.38 in
Thickness 0.04 in
Barrel Type Butted
Stud Size 8
Terminal Style Standard
Terminal Type Ring
Conductor Size 12 To 10 AWG
Insulation Material Vinyl
Barrel Length 0.25 in
Max Operating Temperature 221 degrees F
Overall Length 1.03 in
