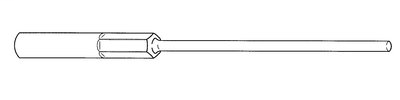

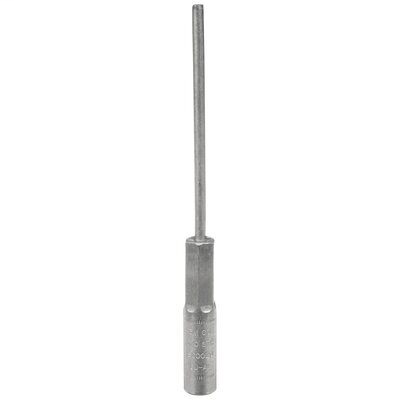

3M SC0020 Stem Connector
$46.26/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # SC0020
Crawford Part # 372

Overview

3M™ SC Stem Connector is uesd when connector cable to an overhead line. The connector features a tin-plated aluminum bareel for installation on either copper or aluminum cable conductors. It is rated for 35 kV voltage applications.

3M™ SC Stem Connector are provided with factory crimped and sealed, tin-plated copper stem for aerial line connections. The connector is provided with antioxidant paste. RoHS 2011/65/EU Compliant.

  • Standard aluminum barrel offers reliable performance
  • Tin-plated copper stem for aerial line connection
  • Stem measures 6 in x 0.31 in
  • Accommodates 2/0 AWG (stranded), 3/0 AWG (solid) conductors
  • Rated for 35 kV voltage applications
  • RoHS 2011/65/EU Compliant
  • 10/case

Specifications

  • 3M ID: 80610028930
  • Barrel Style: Standard Barrel
  • Brand: 3M
  • Case Quantity: 10
  • For Use With: Aluminum or Copper Conductors
  • Indoor/Outdoor: Both
  • Lug Base Metal: Aluminum
  • Lug Type: Compression Lugs
  • Maximum Voltage: 35 Kilovolt
  • Number of Holes: 0
  • Product Series: SC
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Solid Conductor Sizes: 3/0 AWG
  • Stem Diameter: 0.31 Inch
  • Stem Diameter (metric): 7.9 mm
  • Stem Length: 6 inch
  • Stem Length (metric): 152.4 mm
  • Trademark: 3M™

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05400714671
Product Description Factory crimped and sealed stemConnectors have copper stems, aluminum barrels with antioxidant pasteA 3M Parallel Clamp CP-1 will connect the SC series connectors to an overhead jumper wire (available separately)
MDM Pkg GTiN 00054007146711
Length 6 in
Width 7.9 mm
Type Stem Connector
Barrel Type Standard Barrel
Number of Holes 0
Applications Aluminum or Copper Conductors
Capacity 2/0 AWG
Family Brand Name 3M
Max Voltage 35 kV
