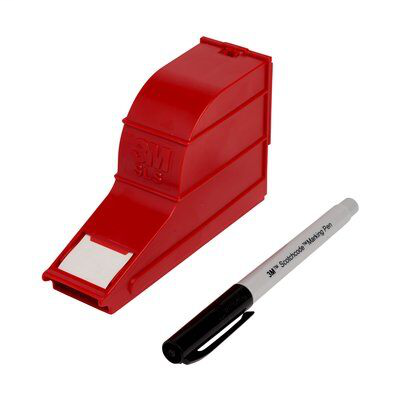

3M Electrical SLS 1 x 2.312 Inch Label Wire Marker Write-On Dispenser with Pen

Features

• Features a write-on area with a transparent self-laminating protective shield to wrap around the written label
• 3M™ ScotchCode™ Write-On Dispensers are self-laminating and handy for identifying wire and cable as well as household, automotive, plumbing and sporting equipment.
• Write-on dispenser includes permanent marking pen
• Refill rolls available (indicated by -R)

Legal Disclaimer

• The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
• Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

• 3M ID: 80610593933
• Adhesive Material: Acrylic
• Application: Marking Wire and Cable
• Brand: ScotchCode™
• Cable Diameter Range: 4,0 - 12 mm
• Color Family: White
• Dispenser/Marker Type: Write-On Dispenser with Tape & Pen
• Dispenser Type: Dispenser with Tape
• Kit Includes: Dispenser filled with SLS Tape and 1 SMP pen
• Labels Per Roll: 170
• Legend Color: White
• Manufacturing Origin: USA
• Marker ID Style: Write-on
• Marker Size: 1.0 inch x 2.312 inch
• Marker Type: Dispenser
• Material: Plastic
• Maximum Insulation Outer Diameter (Metric): 3.7 mm
• Maximum Insulation Outside Diameter: 0.145 in
• Maximum Operating Temperature (Celsius): 49 Degree Celsius
• Maximum Operating Temperature (Fahrenheit): 120 Degree Fahrenheit
• Maximum Outside Diameter: 0.49 Inch
• Maximum Recommended Voltage Rating: 600 V
• Minimum Order Quantity: 1
• Minimum Outside Diameter: 0.15 Inch
• Overall Width (Metric): 19 mm
• Printed Text Type: Write-on
• Product Color: White
• Product Type: Write-on Dispenser
• Solution for: Access Network: FTTH/FTTB/CATV || Access Network: xDSL || Long-haul/Metro Loop Network: CO/POP || Long-haul/Metro Loop Network: Outdoor || Wireless Network: Backhaul
• Wire Marker Products: Write-On Dispenser and Refill Rolls
• Write-on Area Size (Imperial): 1.0 inch x 0.50 inch
• Write-on Area Size (Metric): 25.4 x 12.7 mm
