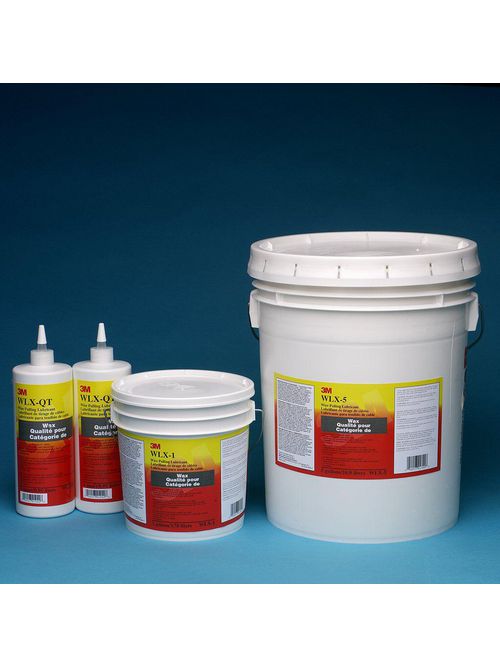

3M Electrical WLX-5 42 lb 5 Gallon Pail Wire Pulling Lubricant Wax
$74.86/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # WLX-5
Crawford Part # 400

Overview

3M™ Wire Pulling Lubricant is a gray, wax-based emulsion that has excellent lubricating properties for smooth, low-tension wire and cable pulling. This wax wipes off the cable quickly and cleanly before terminating or splicing. The lubricant has a low coefficient of friction, which lessens the chance of cable jacket damage from high pulling forces.

The thick, consistent lubricant does not liquefy or separate with hot aging; it scoops and applies easily to wire and cable without runs or drips in hot temperatures; and it will not evaporate too soon after pulls. The lubricant`s low friction coefficient lessens the chance of wire damage from high pulling forces, wipes off the cable quickly and cleanly and leaves less residue in the conduit to block future pulls or prevent removal. Because Wire Pulling Lubricant Wax can be immersed in water for 30 minutes with minimal weight loss, it is also the choice for wet weather applications.

  • Low coefficient of friction lessens the chance of cable jacket damage
  • 5.3% solid residue for easier cable replacement
  • Excellent lubricant for pulling a wide variety of cables types
  • Comes in a 5-gal pail
  • Compatible with a wide range of jacket material and semi-conducting materials
  • Gray, wax-based emulsion
  • Withstands a temperature range of 10 to 194 degrees F (-12 to 90 degrees C)
  • UL/cUL Listed and RoHS 2011/65/EU Compliant
  • 1/case

Specifications

  • 3M ID: 80610833669
  • Applications: Lubricant
  • Case Quantity: 1
  • Color: Gray
  • Lubricant Type: Wax
  • Operating Temperature (Celsius): 12 to 90 Degree Celsius
  • Operating Temperature (Fahrenheit): 10 to 194 Degree Fahrenheit
  • Operating Temperature Range (Celsius): -12 °C to 90 °C
  • Operating Temperature Range (Fahrenheit): 10 °F to 194 °F
  • Product Type: Wire Pulling Lubricants
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Shape: Gel
  • Size: 5 Gallons
  • Temperature Range: 10 - 194 Degrees F (12 - 90 Degrees C)
  • Trademark: Scotch
  • Volume (metric): 18920 ml

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05400741744
Product Description 3M Wire Pulling Lubricant Wax WLX is a gray, wax based emulsion that has excellent lubricating properties for smooth, low tension wire and cable pulling. This wax wipes off the cable quickly and cleanly before terminating or splicing. The lubricant has a low coefficient of friction, which lessens the chance of cable jacket damage from high pulling forces.
MDM Pkg GTiN 00054007417446
Size 5 Gallon
Color Gray
Type Wax
Product Type Wire Pulling Lubrica
Applications Lubricant
Shape Gel
Family Brand Name 3M
