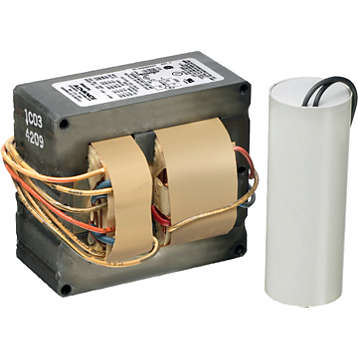

Philips Advance 71A8271001D 120/208/240/277 VAC 60 Hz 250 W High Pressure Sodium Ballast Kit

idw

Product Data

• Full product name: HPS BAL 250W S50 QUAD C&C
• Product number: 71A8271001D
• Skus/Case: 1
• Pieces per Sku: 1
• Short product name: HPS BAL 250W S50 QUAD C&C
• eop_net_weight_pp: 5.176 kg
• Logistics code(s): 913700556609
• Bar code on case: 30781087827117
• Bar code on pack: 781087827116

General Characteristics

• Capacitor value [μF]: 35 MFD
• Capacitor Dia/Oval Dim: 1.65 in
• Ballast Type: Magnetic HID
• Base Model: 71A8271
• Ignitor Catalog Number: LI501-H4
• Line Voltage: 120/208/240/277 V
• Capacitor Temp Rating: 105°C
• Core Size: 4 x 4 (2 coil)
• Line Frequency: 60 Hz
• Capacitor Catalog Number: 7C350P24RA
• Lamp Type: 250W HPS
• Number of Lamps: 1 piece
• Family Name: Core & Coil HPS
• Capacitor Height: 3.7 in
• Capacitor Requirements: 240V
• Input Current (Operating): 2.5/1.47/1.25/1.09 A
• Suitable for Outdoor use?: Yes
• Circuit Type: CWA
• Ignitor Temp Rating: 105°C

Approval & Application Chars

• CSA certificate: Yes
• UL Recognized: Yes
• SASO Certificate: No
• ANSI Code: S50
• FIDE Certificate: No
• CCC certificate: No
• cUL certificate: No
• NOM certificate: No
• Chia Quality Certificate: No
• UL Insulation Class: H(180°C)
• UL Listed: No
• CEC Listing: No
• UL Temperature Code: 1029B
• EISA: No
• HiPot Test (1 minute): 2000 V
• Approbation Marks: ULR, CSA, RoHS
• RoHS Compliant: Yes
• HiPot Test (2 seconds): 2500 V
• Open Circ Voltage Test (Volts): 170-205 V
• ETL Certificate: No
• Temperature marking: B/B/B/B
• CE marking: No
• VDE certificate: No

Operating Characteristics

• Input Current (Starting): 1.61/0.89/0.8/0.68 A
• Nominal Open Circuit Voltage: 187 V
• Input Power Gear: 295 W
• Input Current Short Circuit: 1.16-1.74/0.64-0.96/0.56-0.85/0.49-0.74 A
• Constant wattage deviation: Within Trapezoid
• Inp. Current (Open Circuit): 1.53/0.95/0.77/0.63 A
• Input Voltage at Lamp Dropout: 82/139/158/184 V
• Power Factor: 0.90
• Secondary ShortCircuit Current: 3.65-4.45 A
• Automatic restart: No
• Ballast factor: 1 -

Product Dimensions

• Coil Depth C1: 3.82 in
• Length A1: 4.8 in
• Length A2: 4.4 in
• Width B2: 3.9 in
• Stack Height C2: 1.8 in
• Width B1: 4.3 in

Wiring Characteristics

• Recommended Fuse: 7/4/4/3 A
• Wire Type: Stranded
• Wire Striplength: 0.5 mm
• Max Dist. Ball to Lamp(Remote): 2'
• Allowed Wiring Config(Remote): Yes
• Wire Length by Color: 12"

System Chars On Driver Level

• Rated Lamp Watts: 250W
