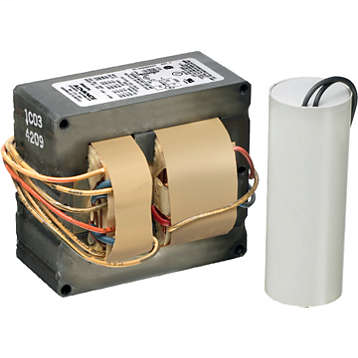

Philips Advance 71A8473001D 120/208/240/277 VAC 60 Hz 400 W High Pressure Sodium Ballast Kit
$169.95/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Advance
Mfg Catalog # 71A8473001D
Crawford Part # 519

idw

Product Data

  • Skus/Case: 1
  • Pieces per Sku: 1
  • Product number: 71A8473001D
  • Logistics code(s): 913700556709
  • Short product name: HPS BAL 400W S51 QUAD KIT
  • Bar code on pack: 781087847312
  • eop_net_weight_pp: 7.117 kg
  • Bar code on case: 30781087847313
  • Full product name: HPS BAL 400W S51 QUAD KIT

General Characteristics

  • Ballast Type: Magnetic HID
  • Capacitor Catalog Number: 7C550P24RA
  • Capacitor value [μF]: 55 MFD
  • Ignitor Catalog Number: LI501-H4
  • Core Size: 4 x 4 (2 coil)
  • Capacitor Requirements: 240V
  • Suitable for Outdoor use?: Yes
  • Family Name: Core & Coil HPS
  • Line Voltage: 120/208/240/277 V
  • Number of Lamps: 1 piece
  • Ignitor Temp Rating: 105°C
  • Lamp Type: 400W HPS
  • Capacitor Height: 3.70 in
  • Base Model: 71A8473
  • Capacitor Temp Rating: 105°C
  • Input Current (Operating): 3.8/2.2/1.9/1.7 A
  • Capacitor Dia/Oval Dim: 1.85 in
  • Circuit Type: CWA
  • Line Frequency: 60 Hz

Approval & Application Chars

  • Temperature marking: D/D/D/D
  • Chia Quality Certificate: No
  • SASO Certificate: No
  • RoHS Compliant: Yes
  • cUL certificate: No
  • CE marking: No
  • CCC certificate: No
  • ETL Certificate: No
  • VDE certificate: No
  • UL Listed: No
  • CSA certificate: Yes
  • HiPot Test (2 seconds): 2500 V
  • HiPot Test (1 minute): 2000 V
  • UL Recognized: Yes
  • UL Temperature Code: 1029D
  • NOM certificate: No
  • Open Circ Voltage Test (Volts): 170-210 V
  • Approbation Marks: ULR, CSA, RoHS
  • CEC Listing: No
  • ANSI Code: S51/M169
  • UL Insulation Class: H(180°C)
  • EISA: No
  • FIDE Certificate: No

Operating Characteristics

  • Input Power Gear: 464 W
  • Power Factor: 0.90
  • Constant wattage deviation: Within Trapezoid
  • Automatic restart: No
  • Inp. Current (Open Circuit): 2/1.2/0.95/0.85 A
  • Input Voltage at Lamp Dropout: 90/156/180/208 V
  • Nominal Open Circuit Voltage: 190 V
  • Input Current (Starting): 3.3/1.8/1.5/1.4 A
  • Secondary ShortCircuit Current: 6-7.4 A
  • Input Current Short Circuit: 2.4-3.6/1.4-2.1/1.2-1.8/1-1.55 A
  • Ballast factor: 1 -

Product Dimensions

  • Width B2: 3.9 in
  • Width B1: 4.3 in
  • Stack Height C2: 2.65 in
  • Length A2: 4.4 in
  • Length A1: 4.8 in
  • Coil Depth C1: 4.30 in

Wiring Characteristics

  • Max Dist. Ball to Lamp(Remote): 2'
  • Allowed Wiring Config(Remote): Yes
  • Wire Length by Color: 12"
  • Wire Striplength: 0.5 mm
  • Recommended Fuse: 10/8/5/5 A
  • Wire Type: Stranded

System Chars On Driver Level

  • Rated Lamp Watts: 400W

Documents

Leaflets

Other Downloads

Overview

UPC 78108784731
Product Description The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire. The core and coil also forms the nucleus of Philips Advance's five other ballast configurations.
MDM Pkg GTiN 00781087847312
Length 4.4 in
Width 3.9 in
Type Electronic
Applications Lighting Luminaire Component
Height 4.25 in
Weight 15.72 LB
Wire Type Stranded
Frequency 60 Hz
Wattage 400 Watt
Family Brand Name Philips Lighting
Lamp Type 400W HPS
Number of Lamps 1
Ballast Type Magnetic HID
Power Rating 400 WTT
Blade Dimensions 120.65 mm L x 107.95 mm W x 101.6 mm H
Start Type PULSE
Power Factor 0.90
Ballast Factor 1
Thermal Protection CLASS P
Lamp Wattage 400 W
Input Wattage 464 W
Input Current 1.7 A
Voltage null
