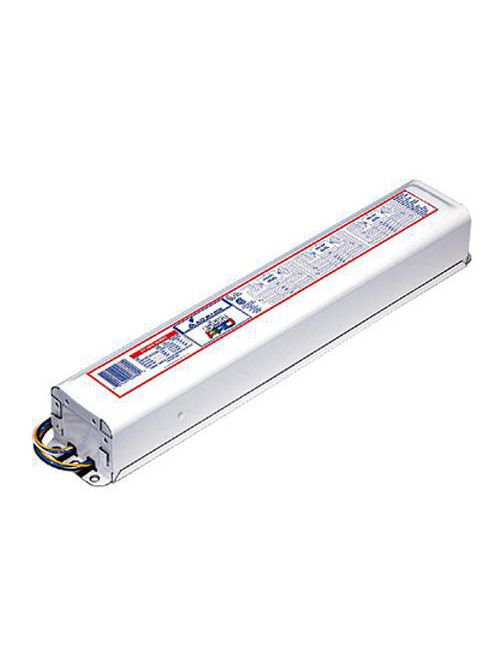

Advance ASB204024BLTPI 120 Volt 2 to 4-Lamp T12HO Electromagnetic Sign Ballast
$219.95/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Advance
Mfg Catalog # ASB204024BLTPI
Crawford Part # 540

idw

Product Data

  • Product number: ASB204024BLTPI
  • eop_pck_cfg: 1
  • Pieces per Sku: 1
  • Full product name: SIGN BALLAST (2-4) T12/HO 20-40FT 120V
  • Short product name: SIGN BALLAST (2-4) T12/HO 20-40FT 120V
  • Bar code on case: 30781087000107
  • eop_net_weight_pp: 9.013 kg
  • Skus/Case: 1
  • Bar code on pack: 781087000106
  • Logistics code(s): 913700586409

General Characteristics

  • Lamp Type: T12/HO
  • Housing Material: Metal
  • Suitable for Outdoor use?: Yes
  • Number of Lamps: 2-4 piece
  • Ballast Type: Magnetic Fluorescent
  • Base Model: ASB204024BLTP
  • Housing: BL3
  • Input Current (Operating): 4 A
  • Input Voltage: 120 V
  • Starting Method: Rapid Start
  • Line Frequency: 60 Hz
  • Lamp Footage(for sign ballast): 20 - 40 FT
  • Housing Dimensions: 19.19" x 3.44" x 2.69"
  • Family Name: SignPRO

Approval & Application Chars

  • EMC Immunity: FCC Non-Consumer
  • CSA certificate: Yes
  • NOM certificate: No
  • UL Listed: Yes
  • UL Recognized: No
  • CSA E: No
  • FIDE Certificate: No
  • Circle E logo: No
  • SASO Certificate: No
  • DOE: No
  • RoHS Compliant: Yes
  • Approbation Marks: UL, CSA, RoHS
  • CEC Listing: No
  • cUL certificate: No

Operating Characteristics

  • Ballast Efficacy Factor: 0.17 -
  • Ignition time: 1 s
  • Power Factor: 0.984
  • Ballast factor: 0.8 -
  • Lamp Current Crest Factor: 1.7 -
  • Automatic restart: Yes
  • Sound Rating: C
  • Input Power Gear: 472 W
  • Max THD: 25 %

Product Dimensions

  • Length A2: 18.63 in
  • Width B1: 3.19 in
  • Height C1: 2.63 in
  • Length A1: 19.19 in

Wiring Characteristics

  • Allowed Wiring Config(Through): Yes
  • Wire Striplength: 0.50/0.375 mm
  • Max Dist.Ball to Lamp(Through): Any = 15'
  • Max Dist. Ball to Lamp(Remote): 15'
  • Wire Gauge: 18AWG
  • Max Dist. Ball to Lamp(Tandem): Any = 15'
  • Wire Type: Solid
  • Allowed Wiring Config(Tandem): Yes
  • Wire Length by Color: See data sheet
  • Allowed Wiring Config(Remote): Yes
  • Lamp Connection: Series

System Chars On Driver Level

  • Rated Lamp Watts: 110W

Overview

UPC 78108700010
Product Description signPRO magnetic ballasts for T12/HO Rapid Start Fluorescent Lamps deliver the combined benefits of efficient operation, long ballast life, and outstanding reliability. Built to perform under all weather conditions, Philips-Advance's family of signPRO magnetic ballasts offers sign suppliers, manufacturers, and installers a broad range of dependable lighting solutions.
MDM Pkg GTiN 00781087000106
Length 18.63 in
Width 3.19 in
Height 2.63 in
Wire Size 18 AWG
Wire Type Solid
Frequency 60 Hz
Family Brand Name Advance
Lamp Type T12/HO
Number of Lamps 4
Ballast Type Magnetic Fluorescent
Housing Material Metal
Power Factor 0.984
Lamp Wattage 110 W
Type Magnetic Fluorescent
Applications SIGN
Wattage 110 Watt
Input Voltage 120 V
Input Wattage 472 W
Input Current 4 A
Start Type RAPID START
Ballast Factor 0.8
Total Harmonic Distortion 25
Sub Brand SignPRO
