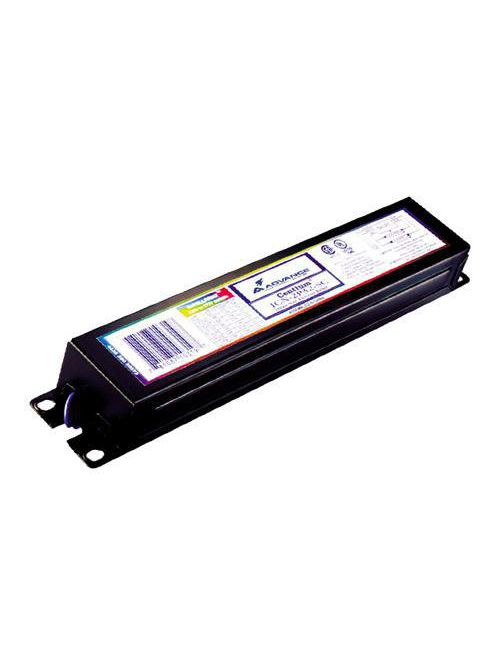

Advance ICN2S8635I 120 to 277 VAC 50/60 Hz 86 W 2-Lamp T8 Electronic Ballast
$128.99/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Advance
Mfg Catalog # ICN2S8635I
Crawford Part # 558

idw

Product Data

  • Product number: ICN2S8635I
  • Skus/Case: 6
  • eop_net_weight_pp: 1.892 kg
  • Logistics code(s): 913710261101
  • Bar code on case: 30781087035802
  • Full product name: ELE BALLAST (2) F96T8/HO 120-277V
  • Pieces per Sku: 1
  • Bar code on pack: 781087035801
  • Short product name: ELE BALLAST (2) F96T8/HO 120-277V

General Characteristics

  • Suitable for Outdoor use?: Yes
  • Base Model: ICN2S86
  • Housing Material: Metal
  • Line Frequency: 50/60 Hz
  • Starting Method: Programmed Start
  • Housing: C
  • Family Name: Centium
  • Lamp Type: F96T8/HO
  • Input Voltage: 120-277 V
  • Ballast Type: Electronic Fluorescent
  • Housing Dimensions: 11.75" x 2.88" x 1.78"
  • Number of Lamps: 1/2 piece

Approval & Application Chars

  • DOE: No
  • RoHS Compliant: Yes
  • cUL certificate: No
  • Circle E logo: No
  • CEE Rated: No
  • FIDE Certificate: No
  • Energy Star: No
  • SASO Certificate: No
  • UL Listed: Yes
  • EMC Immunity: FCC Non-Consumer
  • NEMA Premium: No
  • Approbation Marks: UL, CSA, RoHS
  • CEC Listing: Yes
  • NOM certificate: No
  • UL Recognized: No
  • CSA certificate: Yes
  • CSA E: No

Operating Characteristics

  • Automatic restart: No
  • Ballast Efficacy Factor: 0.51 -
  • Power Factor: 0.98
  • Sound Rating: A
  • Ballast factor: 0.95 -
  • Ignition time: 1.5 s
  • Lamp Current Crest Factor: 1.7 -
  • Input Power Gear: 185-185 W
  • Max THD: 10 %

Product Dimensions

  • Height C1: 1.78 in
  • Length A2: 11.14 in
  • Length A1: 11.75 in
  • Width B1: 2.89 in

Wiring Characteristics

  • Wire Length by Color: See data sheet
  • Color input terminals: No terminals
  • Wire Striplength: 0.50/0.375 mm
  • Allowed Wiring Config(Tandem): Yes
  • Allowed Wiring Config(Through): Yes
  • Wire Gauge: 18AWG
  • Max Dist. Ball to Lamp(Remote): 12'
  • Max Dist. Ball to Lamp(Tandem): Blue = 12'
  • Max Dist.Ball to Lamp(Through): Blue = 12'
  • Color output terminals: No terminals
  • Wire Type: Solid
  • Connector type: No connector
  • Allowed Wiring Config(Remote): Yes
  • Lamp Connection: Series

System Chars On Driver Level

  • Rated Lamp Watts: 86W

Temperature Characteristics

  • T-case maximum: 70 C

Overview

UPC 78108703580
Product Description Centium T8 High Output Solution for Cold Environments
MDM Pkg GTiN 00781087035801
Family Brand Name Advance
Length 11.14 in
Width 2.89 in
Type Electronic Fluorescent
Height 1.78 in
Wire Size 18 AWG
Wire Type Solid
Frequency 50/60 Hz
Wattage 86 Watt
Input Voltage 120/277 V
Lamp Type F96T8/HO
Number of Lamps 2
Ballast Type Electronic Fluorescent
Housing Material Metal
Input Wattage 185-185 W
Start Type PROGRAMMED START
Power Factor 0.98
Ballast Factor 0.95
Lamp Wattage 86 W
Total Harmonic Distortion 10
Sub Brand Centium
