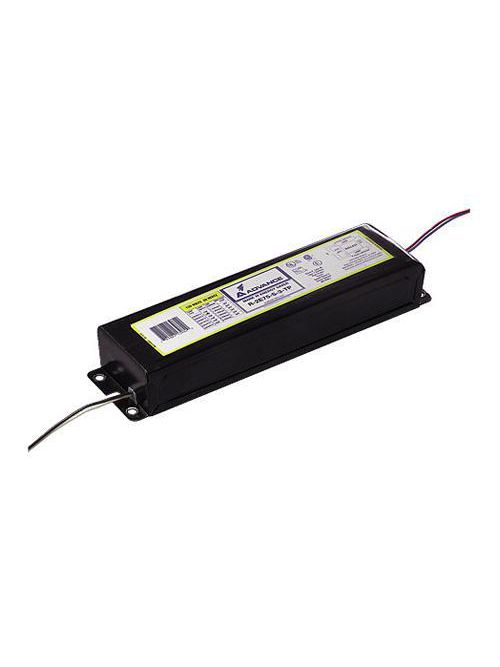

Advance V2S110TPI 277 Volt 60 Hz 110 W 2-Lamp Magnetic Linear Fluorescent Ballast

idw

Product Data

• Bar code on pack: 781087107522
• Product number: V2S110TPI
• eop_pck_cfg: 6
• Bar code on case: 30781087107523
• Skus/Case: 6
• Full product name: MAG BALLAST (2) F96T12/HO 277V
• Logistics code(s): 913710314201
• eop_net_weight_pp: 5.185 kg
• Pieces per Sku: 1
• Short product name: MAG BALLAST (2) F96T12/HO 277V

General Characteristics

• Input Voltage: 277 V
• Base Model: V2S110TP
• Family Name: Mark III
• Line Frequency: 60 Hz
• Ballast Type: Magnetic Fluorescent
• Starting Method: Rapid Start
• Housing: R9
• Housing Dimensions: 11.75" x 3.19" x 2.63"
• Input Current (Operating): 0.87 A
• Lamp Type: F96T12/HO
• Number of Lamps: 2 piece
• Housing Material: Metal
• Suitable for Outdoor use?: Yes

Approval & Application Chars

• cUL certificate: No
• NOM certificate: No
• Approbation Marks: UL, CSA, RoHS
• CSA certificate: Yes
• UL Listed: Yes
• DOE: Yes
• EMC Immunity: FCC Non-Consumer
• FIDE Certificate: No
• SASO Certificate: No
• CEC Listing: No
• Circle E logo: Yes
• CSA E: Yes
• UL Recognized: No
• RoHS Compliant: Yes

Operating Characteristics

• Input Power Gear: 232 W
• Sound Rating: C
• Max THD: 20 %
• Automatic restart: Yes
• Power Factor: 0.983
• Ballast Efficacy Factor: 0.39 -
• Ignition time: 1 s
• Ballast factor: 0.9 -
• Lamp Current Crest Factor: 1.7 -

Product Dimensions

• Length A1: 11.75 in
• Length A2: 11.14 in
• Width B1: 3.19 in
• Height C1: 2.63 in

Wiring Characteristics

• Lamp Connection: Series
• Allowed Wiring Config(Remote): Yes
• Wire Type: Solid
• Wire Gauge: 18AWG
• Max Dist.Ball to Lamp(Through): Any = 15'
• Wire Length by Color: See data sheet
• Allowed Wiring Config(Tandem): Yes
• Max Dist. Ball to Lamp(Remote): 15'
• Allowed Wiring Config(Through): Yes
• Wire Striplength: 0.50/0.375 mm
• Max Dist. Ball to Lamp(Tandem): Any = 15'

System Chars On Driver Level

• Rated Lamp Watts: 110W
