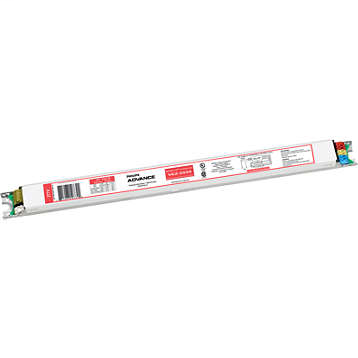

Advance VEZ2S5435M 277 VAC 60 Hz 54 W 2-Lamp Electronic Dimming Ballast

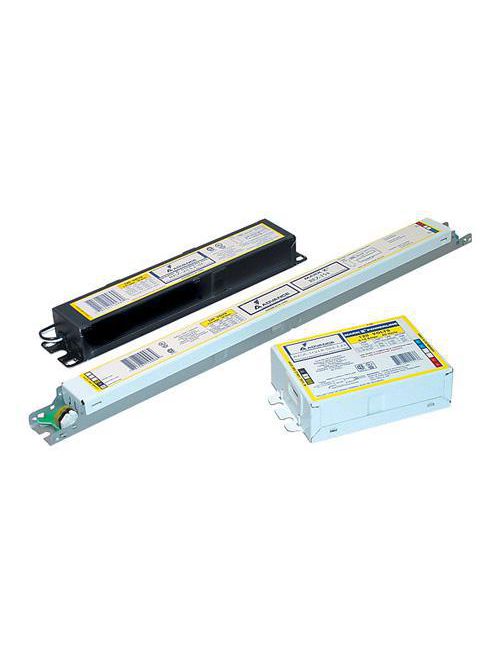

Product image thumbnail 0
Product image thumbnail 1
$257.36/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Advance
Mfg Catalog # VEZ2S5435M
Crawford Part # 631

idw

Product Data

  • Pieces per Sku: 1
  • Skus/Case: 12
  • Bar code on pack: 781087107324
  • Product number: VEZ2S5435M
  • Short product name: ELE DIMMING BALLAST (2) F54T5/HO 277V
  • Logistics code(s): 913700501471
  • Full product name: ELE DIMMING BALLAST (2) F54T5/HO 277V
  • Bar code on case: 50781087109620
  • eop_net_weight_pp: 0.413 kg

General Characteristics

  • Base Model: VEZ2S54
  • Starting Method: Programmed Start
  • Number of Lamps: 2 piece
  • Suitable for Outdoor use?: Yes
  • Input Voltage: 277 V
  • Line Frequency: 60 Hz
  • Ballast Type: Dimmable Fluorescent
  • Housing: D
  • Housing Dimensions: 16.7" x 1.18" x 1.0"
  • Input Current (Operating): 0.45 A
  • Housing Material: Metal
  • Family Name: Mark 10 Powerline
  • Lamp Type: F54T5/HO

Approval & Application Chars

  • Approbation Marks: UL, CSA, RoHS
  • Circle E logo: No
  • CSA E: No
  • EMC Immunity: FCC Consumer
  • RoHS Compliant: Yes
  • cUL certificate: No
  • SASO Certificate: No
  • CSA certificate: Yes
  • UL Listed: Yes
  • UL Recognized: No
  • FIDE Certificate: No
  • CEE Rated: No
  • NEMA Premium: No
  • CEC Listing: Yes
  • Energy Star: No
  • NOM certificate: No

Operating Characteristics

  • Max THD: 10 %
  • Ballast Efficacy Factor: 0.80 -
  • Min. Input Watts: 24 (min) W
  • Power Factor: 0.98
  • Lamp Current Crest Factor: 1.7 -
  • Sound Rating: A
  • Automatic restart: Yes
  • Max. Input Watts: 125 (max) W
  • Ignition time: 1.5 s
  • Min. Ballast Factor: 0.03 (min) -
  • Max. Ballast Factor: 1 (max) -

Product Dimensions

  • Height C1: 1.00 in
  • Width B1: 1.18 in
  • Length A2: 16.34 in
  • Length A1: 16.70 in

Wiring Characteristics

  • Max Dist. Ball to Lamp(Remote): No Remote
  • Allowed Wiring Config(Through): Yes
  • Color output terminals: RED, YEL & BLU
  • Lamp Connection: Series
  • Max Dist.Ball to Lamp(Through): Blue = 5'
  • Allowed Wiring Config(Tandem): No
  • Control Wire Gauge: NA
  • Allowed Wiring Config(Remote): No
  • Max Dist. Ball to Lamp(Tandem): No Tandem
  • Color input terminals: BLK & WHT
  • Connector type: Poke-In
  • Wire Striplength: 0.375 mm
  • Wire Type: Solid
  • Wire Gauge: 18AWG
  • Wire Length by Color: No wires

System Chars On Driver Level

  • Rated Lamp Watts: 54W

Temperature Characteristics

  • T-case maximum: 70 C

Documents

Leaflets

Other Downloads

Overview

UPC 78108710962
Product Description For companies looking to make their fixed-output linear T8, 4-pin CFL, and T5/HO fluorescent systems more cost effective and sustainable, Mark 10 Powerline ballasts provide an easy solution without the need for additional control leads. Simply, (1) replace the ballast, (2) replace the switch, (3) dim the lights, that is all it takes. It's that easy to bring the convenience and flexibility of fluorescent dimming to conference rooms, private offices, auditoriums, architectural cove lighting anywhere dimming is required.
MDM Pkg GTiN 00781087109625
Length 16.34 in
Width 1.18 in
Height 1.00 in
Wire Size 18 AWG
Wire Type Solid
Frequency 60 Hz
Wattage 54 Watt
Family Brand Name Advance
Lamp Type F54T5/HO
Number of Lamps 2
Ballast Type Dimmable Fluorescent
Housing Material Metal
Power Factor 0.98
Lamp Wattage 54 W
Input Voltage 277 V
Input Current 0.45 A
Voltage 277 Volt
