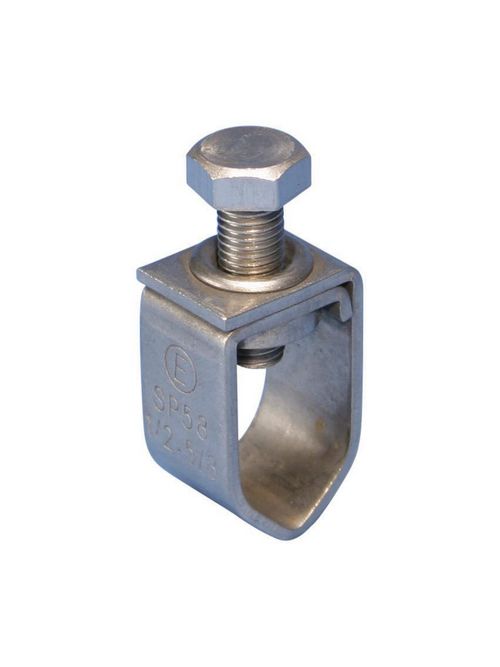

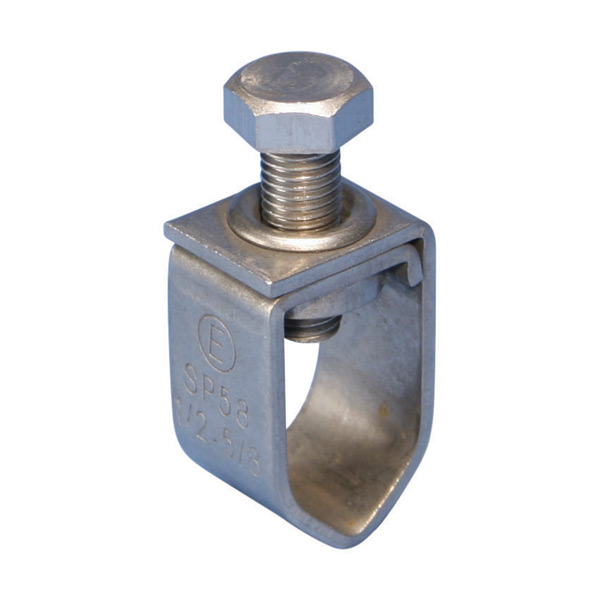

Erico SP58 1/2 - 5/8 Inch Stainless Steel Ground Rod Clamp
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$2.23/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Erico Inc
Mfg Catalog # SP58
Crawford Part # 228593

Features

  • Unique stamped body design will not crack from excessive torque
  • Provides a greater surface area contact to allow improved performance of the connector
  • Compatible with copper, copper bonded, galvanized, stainless steel, rebar and plain steel ground rods and electrodes

Specifications

  • Part Number: SP58
  • Material: Stainless Steel 304 (EN 1.4301)
  • Torque (TQ): 150 – 300 in lb
  • Ground Rod Diameter, Nominal: 1/2" – 5/8"
  • Ground Rod Diameter, Actual (Ø): 0.500" – 0.625"
  • Conductor Size: #10 Stranded - #2 Stranded || 6 mm² Stranded - 25 mm² Stranded
  • Wrench Size: 1/2"
  • Certifications: cULus
  • Standard Packaging Quantity: 50 pc
  • UPC: 78285660651
  • EAN-13: 8711893094015

Categories

Overview

UPC 78285660651
Product Description Ground Rod Clamp, Rod to Conductor, Stainless Steel, 1/2"5/8" dia, #12 Stranded-#2 Stranded, 4 mm Stranded-25 mm Stranded, 1/2" Wrench
MDM Pkg GTiN 00782856606512
Type Ground Rod Clamp, Stainless Steel
Material Stainless Steel
Conductor Size 25 mm
Standard CULus
Torque 300 lb-in
Family Brand Name Erico
Certifications CULus
Standard Packaging Qty 50 pc
Sub Brand ERICO
