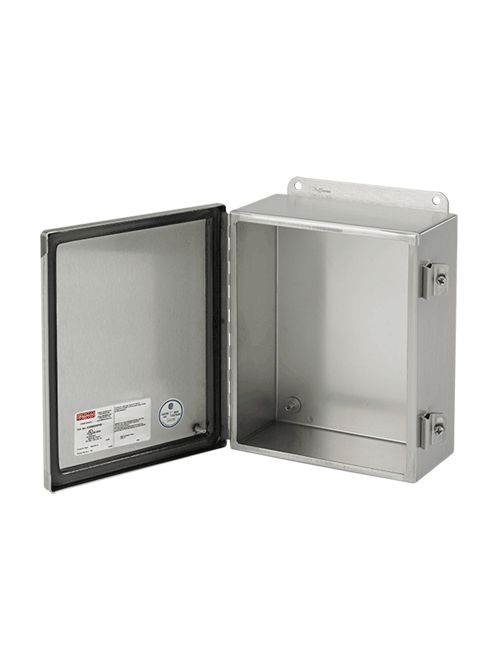

Hoffman A1212CHNFSS 12 x 12 x 6 Inch 14 Gauge 304 Stainless Steel NEMA 4X Hinge Cover Junction Box
$847.88/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A1212CHNFSS
Crawford Part # 228598

Features

  • 16 and 14 gauge Type 304 or 316L stainless steel
  • Seams continuously welded and ground smooth
  • Seamless foam-in-place gasket
  • Stainless steel screws and clamps
  • Pull stainless steel continuous hinge pin to remove door
  • Weldnuts provided for mounting optional panels and terminal block kits
  • Bonding provision on door and body

Notes

  • A6044CHNFSS and A6044CHNFSS6 UL 508A Listed. The remaining catalog numbers are UL 50 Listed.
  • Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.

Accessories

  • Fast-Operating Clamp-Cover Junction Box Clamp
  • Lock Kit for Clamp Cover Junction Boxes
  • Panels for Junction Boxes
  • Terminal Block Kit Assembly for Junction Boxes Overview

Specifications

  • Bulletin Number: A51S
  • Model Code: 56460
  • Ship Wt. Std. Pkg. (lbs): 26.96
  • Interchangeable: False
  • UL Listed: 50, 50E
  • Catalog Number: A1212CHNFSS
  • A in.: 12
  • B in.: 12
  • C in.: 6
  • F in.: 5.50
  • Panel Size D x E in.: 10.75 x 10.88
  • J in.: 5.62
  • N in.: 2.38
  • Conductive Panel: A12P12G
  • V in.: 0.25
  • T in.: 11.00
  • Overall L x W in.: 13.50 x 12.94
  • Steel Panel: A12P12
  • Mounting G x H in.: 12.75 x 10.00
  • Y in.: 0.62
  • Cover Gauge: 16
  • Body Gauge: 14
  • Stainless Steel Type: 304
  • Standards: UL 50, 50E Listed; Type 3R, 4, 4X, 12; File No. E27567 || cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E27567 || UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997 || NEMA/EEMAC Type 3R, 4, 4X, 12, 13 || CSA File No. 42184: Type 4, 4X, 12 || IEC 60529, IP66 ||

Overview

UPC 78351056460
Product Description Used in either indoor or outdoor applications, these enclosures combine a rugged continuous hinge, seamless foam-in-place gasket and stainless steel screw-down clamps for a reliable seal that protects components from corrosive environments.
MDM Pkg GTiN 00783510564605
Finish Brushed/Grinded
Width 305 mm
Size 12.00x12.006.00 in
Color Stainless Steel
Type Two Lock, Single Door
Material Stainless Steel
Applications Used in Either Corrosive or Outdoor Applications
Mounting Type Wall
Depth 152 mm
Height 305 mm
Standard UL 50,4,UL 508A Listed,NEMA/EEM,File No. E27567,CUL Listed Per CSA C22.2 No 94,Type 3R,4X,50E Listed,File No. E61997,12
Family Brand Name Hoffman
Gauge 14 and 16
Cover Gauge 16
Body Gauge 14
Cover Type Continuous Hinged with Clamp
Sub Brand Hoffman
