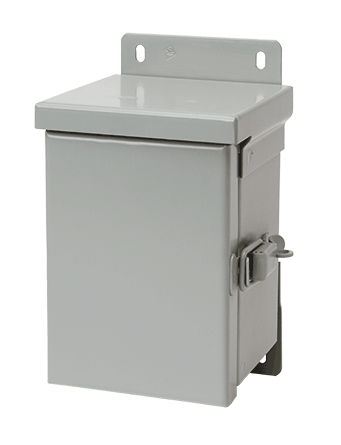

Hoffman A12R126HCR 12 x 12 x 6 Inch 16 Gauge Galvanized Steel NEMA 3R Hinge Cover Enclosure
Product image thumbnail 0
Product image thumbnail 1
$185.95/ea
In Stock | 4 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A12R126HCR
Crawford Part # 227985

Features

  • Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
  • Plated steel hinge has stainless steel pin
  • Weldnuts provided for mounting optional panels
  • Provisions for padlocking on zinc-plated draw-pull catch
  • Knockouts on bottom of enclosure
  • No gasketing

Specifications

  • Height (H) (inch): 12
  • Height (H) (millimetre): 305
  • Width (W) (inch): 12
  • Width (W) (millimetre): 305
  • Depth (D) (inch): 6
  • Depth (D) (millimetre): 152
  • Protection Rating: NEMA Type 3R
  • Material: Mild Steel
  • NEMA Rating: 3R Weather-resistant, except dust
  • Panel Size (D x E) (inch): 10.25 x 10.25
  • Panel Size (D x E) (millimetre): 260 x 260
  • Overall Dimensions (L x W) (inch): 14.00 x 12.81
  • Overall Dimensions (L x W) (millimetre): 356 x 325
  • Mounting (G) (inch): 13
  • Mounting (G) (millimetre): 330
  • Panel: A12N12P
  • Perforated Panel: A12N12PP
  • Knockout Pattern: C-D-E-F-G
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP32
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.52
  • Size: 12.00x12.00x6.00 in
> View Substitutes (1)

Categories

Overview

UPC 78351038760
Product Description Small Drip-Shield Hinged-Cover, Type 3R protects wiring and other electrical components in outdoor applications that require protection from rain, sleet, snow or dripping water. It offers the flexibility of securing enclosure with an optional padlock in its draw-pull catch and weldnuts for optional panel mounting. These enclosures have a size range of 6 x 4 x 4-in. to 12 x 12 x 10-in.
MDM Pkg GTiN 00783510387600
Finish Powder Coated
Width 12 in
Size 12.00x12.00x6.00 in
Color Gray
Type Gangable, Single Door, Single Lock, Small
Material Steel
Applications Controls and Drives; Power Distribution
Mounting Type Wall
Depth 6 in
Height 12 in
Standard 50E Listed,CUL Listed Per CSA C22.2 No 94,File No. E27567,IEC 60529,IP32,NEMA/EEMAC Type 3R,Type 3R,Type 3R File No. E27567,UL 50
Family Brand Name Hoffman
Cover Type Hinged
Sub Brand Hoffman
Thickness 1.52 mm
