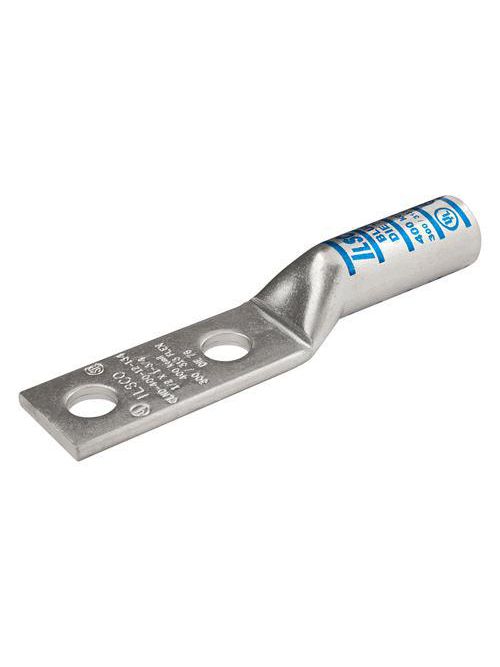

ILSCO CLND-2/0-38-1 CU CMP NO SYT 2
Product image thumbnail 0
Product image thumbnail 1
$6.19/ea
In Stock | 2 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ilsco
Mfg Catalog # CLND-2/0-38-1
Crawford Part # 227738

Specifications

  • UPC Code: 78366963782
  • UNSPSC Code: 39121448
  • Dual Rated: FALSE
  • Conductor Range CU Stranded (Primary, run, main, line): 2/0 Str
  • Conductor Size CU (Primary, run, main, line): 2/0 Str
  • Flex Conductor Range: 1/0 G,H,I,K,M,DLO
  • Flex Conductor Size (Class G): 1/0 G
  • Flex Conductor Size (Class H): 1/0 H
  • Flex Conductor Size (Class I): 1/0 I
  • Flex Conductor Size (Class K): 1/0 K
  • Flex Conductor Size (Class M): 1/0 M
  • Flex Conductor Size (Class DLO): 1/0 DLO
  • Expanded Conductor Range: 2/0 Str - 4 Str
  • Expanded Conductor Size: 2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str
  • Mounting Bolt/Stud Size: 3/8/2020
  • Length (IN): 3.833
  • Length (mm): 97.3582
  • Width (IN): 0.811
  • Width (mm): 20.5994
  • Height (IN): 0.597
  • Height (mm): 15.1638
  • Weight (LB): 0.109939194
  • Barrel Length (IN): 1.5
  • Barrel Length (mm): 38.1
  • Dimension G (IN): 0.414
  • Dimension G (mm): 10.5156
  • Inside Diameter (IN): 0.437
  • Inside Diameter (mm): 11.0998
  • Mounting Hole Diameter (IN): 0.406
  • Mounting Hole Diameter (mm): 10.3124
  • Mounting Hole Spacing (IN): 1
  • Mounting Hole Spacing (mm): 25.4
  • Outside Diameter (IN): 0.562
  • Outside Diameter (mm): 14.2748
  • Strip Length (mm): 39.6748
  • Tang Length (IN): 1.937
  • Tang Length (mm): 49.1998
  • Tang Thickness (IN): 0.125
  • Tang Thickness (mm): 3.175
  • Tang Width (IN): 0.811
  • Tang Width (mm): 20.5994
  • Material: Copper
  • Conductor Material: Copper
  • Connector Finish: Tin
  • Color: Silver
  • Die Color Code: Black
  • Direct Burial: TRUE
  • Temperature Rating: 90°C
  • Voltage Rating: 35 kV
  • CSA File Number: LR-29601
  • CSA Standard: C22.2 No. 65-03
  • UL Control Number: 453G
  • UL File Number: E6207
  • UL / CULUS Specification: UL 486A/B Listed,UL 467 Listed
  • NEBS Rating: Level 3
  • Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
  • Barrel Marking: Ink
  • Barrel Type: Long
  • Connection: Compression
  • Connecting angle: 180°
  • Conductor Type: Stranded,Flex
  • Contains DE-OX: FALSE
  • ILSCOs Die Catalog Number: ILD-45
  • Flared End: FALSE
  • Mounting Hole Type: Thru
  • Narrow Tang: FALSE
  • Number of Mounting Holes: 2
  • Sight Window: FALSE
  • Slotted: FALSE
  • Tang End Shape: Square
  • Undrilled: FALSE
  • Bag Quantity: 1
  • CrossSell: ILD-45, DE-OX-8OZ, TB-6DF1000-P

Overview

UPC 78366963782
Product Description Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size 3/8 in, mounting hole spacing 1 in., UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180 connecting angle, Copper Primary Conductor 2/0 Str, no sight window, Square tang end, flex conductor range 1/0 G,H,I,K,M,DLO, rated for 35 kV, die color code Black, primary color Silver, die index I-45,
MDM Pkg GTiN 00783669637823
Type CLND:2 HOLE LONG BARREL
Material Copper
Applications Copper Compression Lug
Bolt Size 3/8 IN
Temperature Rating 90 C
Family Brand Name ILSCO
Sub Brand Surecrimp
Size L:3.833;W:0.811;H:0.597 IN
Color Silver
Voltage 35,000 Volt
