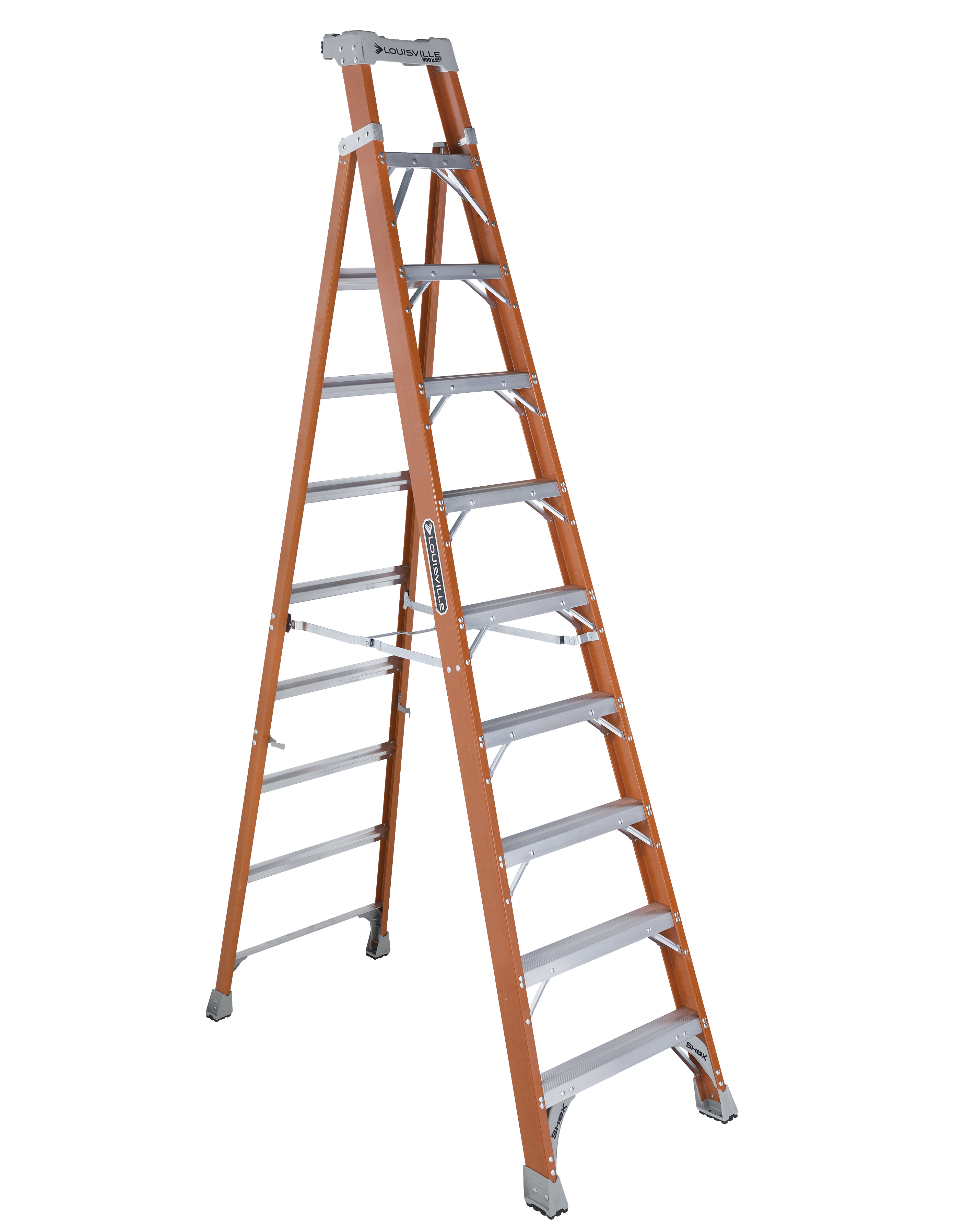

Louisville Ladder FXS1510 10 Foot Orange Fiberglass Step/Shelf Ladder
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
Already a Customer? Log in to view your pricing
Manufacturer Louisville Ladder
Mfg Catalog # FXS1510
Crawford Part # 568855


  • Converts from a Step Ladder into a Shelf Ladder for a 2 in 1 combination
  • V-Shape ProTop allows the ladder to lean against walls, buildings and poles
  • ProTop with magnet and multiple tool slots
  • Innovative Lock Latch to secure rear section
  • Step Ladder angles allows you to get closer to the work area
  • SHOX impact absorption system
  • Raptor Boot with slip resistant non-marring bonded tread
  • Inside spreader braces
  • Double rivet step construction
  • Double heavy duty reinforcements


  • Size: 10 ft
  • Material: Fiberglass
  • Style: 2 in 1
  • Load Capacity: 300 lbs
  • Duty Rating: Type IA

Other sizes available in this series

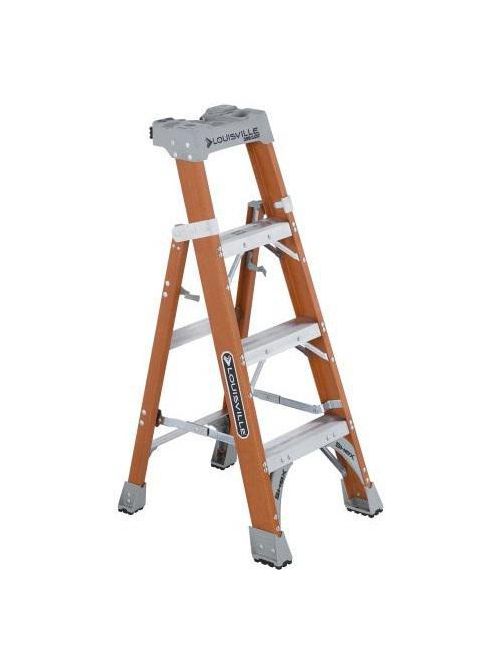

  • 4 ft
  • 6 ft
  • 8 ft
  • 10 ft
  • 12 ft


  • Style: 2 in 1 Step-Straight Ladder
  • Size: 10 ft
  • Load Capacity: 300 lbs
  • Duty Rating: Type IA
  • Max. Reach: Step Ladder Position:14' 02"
  • Max. Reach: Shelf Ladder Position: 13' 03"
  • Max. Standing Height: Step Ladder Position: 7' 07"
  • Max. Standing Height: Shelf Ladder Position: 6' 08"
  • Bottom Width: 29 1/4"
  • Approx. Spread: 60"
  • Weight: 39 lbs
  • Approx. Cubic Feet: 14

Related Products

  • FXS1504
  • FXS1506
  • FXS1508
  • FXS1510
  • FXS1512


UPC 72886513316
Product Description This Louisville 10 foot fiberglass Cross Step ladder has a Type IA duty rating with load capacity of 300lbs. This ladder combines the Shelf and Step Ladder for a 2 in 1 combination made to take on multiple placement locations. The shelf design and its unique ProTop and innovative locking mechanism allows for positioning against a wall, building, or pole. When unlocked, this ladder sets up as a regular step ladder. The angles of the step ladder allow the capability to get closer to the work area. The Cross-Step Ladder is equipped with a V-shape ProTop with non-marring slip resistant rubber tread that allows it to be placed safely on corners and poles. This ladders ProTop also features a magnet and multiple slots that allow quick and easy access to your tools. Other features include Louisville Ladders patented SHOX impact absorption system, new Raptor Boot with bonded heavy duty slip resistant tread, inside spreader braces that protect the ladder during transport, heavy duty reinforcements and double rivets. The new Louisville FXS1510 Fiberglass Cross-Step ladder meets or exceeds the safety standards set by ANSI, CSA, and OSHA.
Size 10 ft
Type 2-in-1
Material Fiberglass
Weight 39 lb
Style 2 In 1 Step-Straight Ladder,2 In 1
Family Brand Name Louisville Ladder
Rung Type Standard
Duty Rating Type IA
Spread 60 in
Load Capacity 300 lb
Bottom Width 29-1/4 in
Closed Height 122.278 in
