Ferraz Shawmut 30320 30 Amp 600 Volt Midget Fuse Block

$4.68/ea

Usually ships within 6 to 8 Days

Adding...

Already a Customer? Log in to view your pricing

Specifications

UPC	78200175932

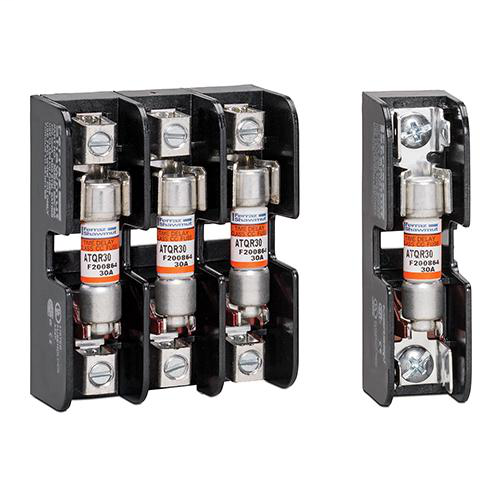

Product Description	Mersen midget fuse blocks accommodate all 30 ampere 1-1/2 x 13/32 midget fuses. Class CC fuse blocks accommodate all 30 ampere Class CC fuses. A choice of box, screw, or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy.
MDM Pkg GTiN	00782001759322
Length	3.04 in
Width	0.75 in
Type	Open-Style
Connector Type	Pressure Plate with Double Quick Connects
Mounting Type	Screw Mount,DIN Rail
Height	1.31 in
Weight	0.1 lb
Fuse Type	10 x 38 mm Midget
Pkg Qty	10
Family Brand Name	Ferraz Shawmut
Class	M
Insulation Material	GFPC
Tc Connection	Pressure Plate With Double Quick Connects
Amperage	30 Amp
Fuse Interrupt Rating	30 A
Number of Poles	1
Rated Voltage AC	600 V
Rated Voltage DC	600 V
Fuse Class	Midget
