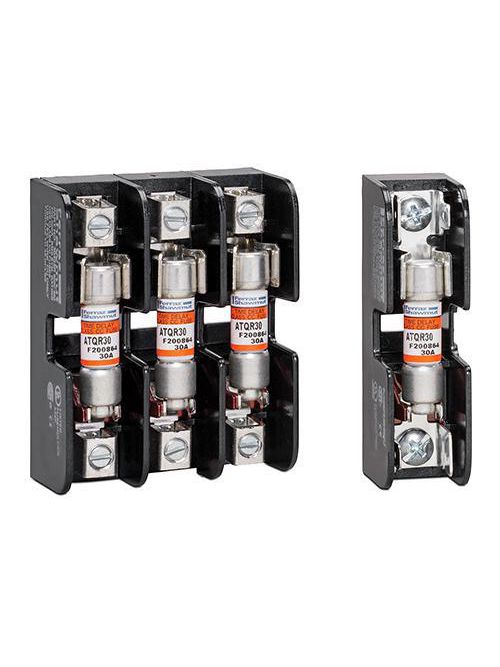

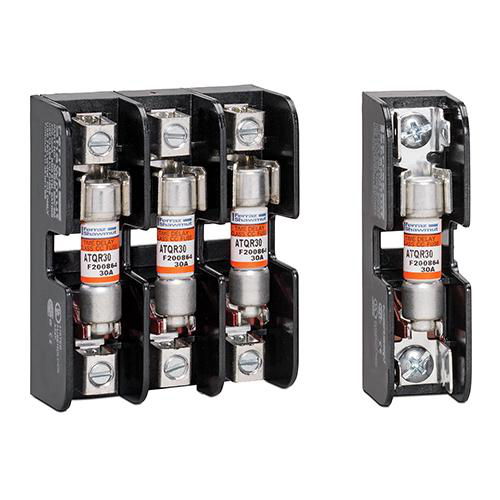

Ferraz Shawmut 30322R 2-Pole 30 Amp 600 Volt Class CC Fuse Block
$10.20/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # 30322R
Crawford Part # 113917

Specifications

  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 600 V
  • Ampere Rating: 30 A
  • ROHS Compliant: Yes
  • Fuse Class: Class CC
  • Short Circuit Current Rating (SCCR): 200
  • Fuse Type/Class: Class CC
  • Number of Poles: 2-pole
  • Fuse Installation Method: Clip-in
  • Body/Insulating Material: GFPC
  • Max Fuse Rating: 30 A
  • Installation Mounting: Screw Mount or DIN Rail

Product Dimensions

  • Product Weight: 0.23 lb
  • Product Width: 0.85 in
  • Product Length: 3.04 in
  • Product Height: 1.31 in

Packaging Dimensions

  • Sell Pack Quantity: 5 Each
  • Sell Pack Weight: 1.21 lb
  • Sell Pack Width: 3.12 in
  • Sell Pack Length: 7 in
  • Sell Pack Height: 2.12 in

Categories

Overview

UPC 78200175040
Product Description Mersen midget fuse blocks accommodate all 30 ampere 1-1/2 x 13/32 midget fuses. Class CC fuse blocks accommodate all 30 ampere Class CC fuses. A choice of box, screw, or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy.
MDM Pkg GTiN 00782001750404
Length 3.04 in
Width 0.85 in
Type Open-Style
Connector Type Pressure Plate with Double Quick Connects
Mounting Type DIN Rail,Screw Mount
Height 1.31 in
Weight 0.23 lb
Fuse Type 10 x 38 mm Class CC
Pkg Qty 5
Family Brand Name Ferraz Shawmut
Class CC
Insulation Material GFPC
Tc Connection Pressure Plate With Double Quick Connects
Amperage 30 Amp
Fuse Interrupt Rating 30 A
Number of Poles 2 Pole
Rated Voltage AC 600 V
Rated Voltage DC 600 V
Fuse Class Class CC
Voltage null
