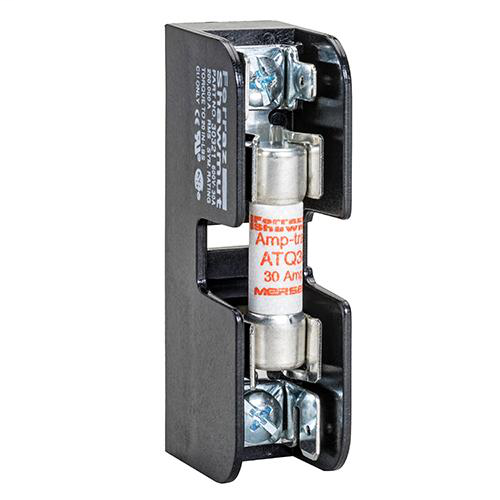

Ferraz Shawmut 30351 1-Pole 30 Amp 600 Volt Midget Fuse Block
$8.74/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # 30351
Crawford Part # 113920

Specifications

  • Sell Pack Height: 2.12 in
  • Product Weight: 0.11 lb
  • Product Length: 3.04 in
  • Product Width: 0.85 in
  • Ampere Rating: 30 A
  • Installation Mounting: Screw Mount or DIN Rail
  • Fuse Type/Class: Midget
  • Product Height: 1.31 in
  • ROHS Compliant: Yes
  • Sell Pack Width: 3.12 in
  • Sell Pack Length: 7 in
  • Body/Insulating Material: GFPC
  • Max Fuse Rating: 30 A
  • Sell Pack Quantity: 10 Each
  • Fuse Installation Method: Clip-in
  • Short Circuit Current Rating (SCCR): 10 to 100 (dependant on fuse rating)
  • Fuse Class: Midget
  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 600 V
  • Number of Poles: 1-pole

Approvals & Standards

  • UL listed, guide IZLT, File E52283
  • CSA certified class 6225, File 32169
  • Approvals & Standards

Overview

UPC 78200175994
Product Description Mersen midget fuse blocks accommodate all 30 ampere 1-1/2 x 13/32 midget fuses. Class CC fuse blocks accommodate all 30 ampere Class CC fuses. A choice of box, screw, or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy.
MDM Pkg GTiN 00782001759940
Length 3.04 in
Width 0.85 in
Type Open-Style
Connector Type CU Box
Mounting Type DIN Rail,Screw Mount
Height 1.31 in
Weight 0.11 lb
Fuse Type 10 x 38 mm Midget
Pkg Qty 10
Family Brand Name Ferraz Shawmut
Class M
Insulation Material GFPC
Tc Connection CU Box
Amperage 30 Amp
Fuse Interrupt Rating 30 A
Number of Poles 1
Rated Voltage AC 600 V
Rated Voltage DC 600 V
Fuse Class Midget
