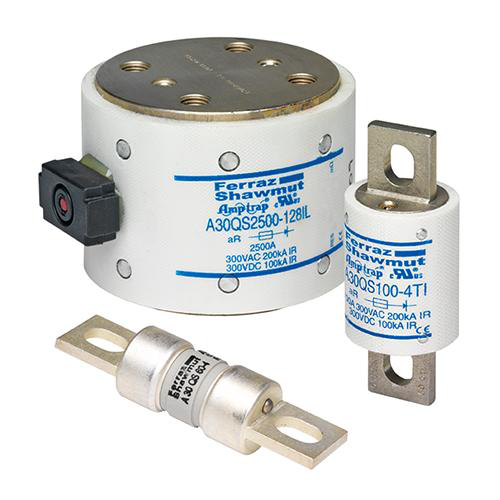

Ferraz Shawmut A30QS200-4 31 x 80 mm 200 Amp 300 Volt Semiconductor Protection Fuse
$64.99/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A30QS200-4
Crawford Part # 113984

Features

  • Low I2t minimizes damage to protected component on short circuit
  • Controlled arc voltage reduces stress to circuit components during fuse clearing
  • Choice of mounting types helps in equipment design

Applications

  • Protection of 300V (or less) heavy duty rectifiers and similar heavy duty power supplies

Specifications

  • Sell Pack Height: 2.5 in
  • Product Weight: 0.3 lb
  • Product Diameter: 1.22 in
  • Product Length: 3.13 in
  • Mounting: Bolted
  • Ampere Rating: 200 A
  • AC Max I.R./Breaking Capacity: I1: 63 kA
  • ROHS Compliant: Yes
  • Sell Pack Weight: 3.15 lb
  • Sell Pack Width: 3.19 in
  • Sell Pack Length: 6.5 in
  • Body/Insulating Material: GMG
  • Connection/Terminal Type: Blade
  • Sell Pack Quantity: 10 Each
  • Speed/Characteristic: High Speed
  • Connection/Terminal Material: Tin-Plated Brass
  • Rated voltage AC UL: 300 V
  • Rated voltage DC UL: 300 V

Approvals & Standards

  • UL recognized component UL File E60314
  • AC: UL guide no. JFHR2 (35-4500A)
  • Approvals & Standards

Categories

Overview

UPC 78200128080
Product Description A30QS Amp-Trap high speed fuses are intended for the protection of Power Semiconductors such as diodes, phase control SCRs and other power semiconductor devices. The A30QS is recommended for new applications providing solutions for your critical protection needs at 300V and less semiconductors.
MDM Pkg GTiN 00782001280802
Length 3.13 in
Type High Speed, Form 101, Fast Acting
Diameter 1.22 in
Terminal Type Blade
Applications For Protection of 300 V or Less Heavy Duty Rectifiers and Similar Heavy Duty Power Supplies
Mounting Type Bolt-In
Weight 0.3 lb
Pkg Qty 10
Family Brand Name Ferraz Shawmut
Insulation Material GMG
Construction GMG
Contact Material Tin-Plated Brass
Tc Connection Blade
Amperage 200 Amp
Response Time 10 Millisecond
Blade Dimensions 1.22 in dia x 3.13 in L
Terminal Material Tin-Plated Brass
Sub Brand Amp-Trap
Rated Voltage AC 300 V
Rated Voltage DC 300 V
