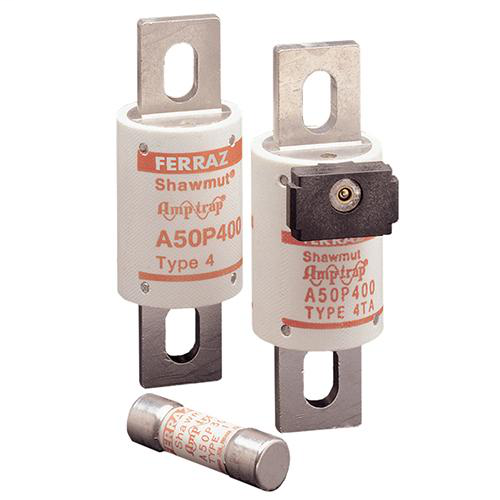

Ferraz Shawmut A50P60-4 20.6 x 81 mm 60 Amp 500 Volt Semiconductor Protection Fuse
$42.29/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A50P60-4
Crawford Part # 114022

Features

  • Low I2t minimizes damage to protected components on short circuit
  • Controlled arc voltage reduces stress to circuit components during fuse clearing
  • Choice of mounting types helps in equipment design

Applications

  • Protection of DC drives, UPS and other equipment of 500 volts or less

Specifications

  • Sell Pack Height: 1.69 in
  • Product Weight: 0.2 lb
  • Product Diameter: 0.81 in
  • Product Length: 3.19 in
  • Mounting: Bolted
  • Ampere Rating: 60 A
  • AC Max I.R./Breaking Capacity: I1: 25 kA
  • ROHS Compliant: Yes
  • Sell Pack Weight: 2.1 lb
  • Sell Pack Width: 3.12 in
  • Sell Pack Length: 4.25 in
  • Body/Insulating Material: GMG
  • Connection/Terminal Type: Blade
  • Sell Pack Quantity: 10 Each
  • Speed/Characteristic: High Speed
  • Connection/Terminal Material: Tin-Plated Copper
  • Rated voltage AC UL: 500 V
  • Rated voltage DC UL: 450 V

Approvals & Standards

  • UL Recognized Component UL File 60314
  • AC: UL Guide No. JFHR2 (10-800A)
  • DC: UL Guide No.JFHR2 (35-800A)
  • Approvals & Standards

Overview

UPC 78200194600
Product Description A50P Amp-Trap Form 101 high speed fuses were developed for DC drives, uninterruptable power supplies and similar applications requiring better protection (lower I2t) and superior reliability. The A50P is typically used for replacement.
MDM Pkg GTiN 00782001946005
Length 3.19 in
Type Round
Diameter 0.81 in
Terminal Type Blade
Applications For Protection of DC Drives, UPS and other Equipment of 500 V or Less
Mounting Type Bolt
Weight 0.2 lb
Pkg Qty 10
Family Brand Name Ferraz Shawmut
Insulation Material GMG
Tc Connection Blade
Amperage 60 Amp
Terminal Material Tin-Plated Copper
Rated Voltage AC 500 V
Rated Voltage DC 450 V
