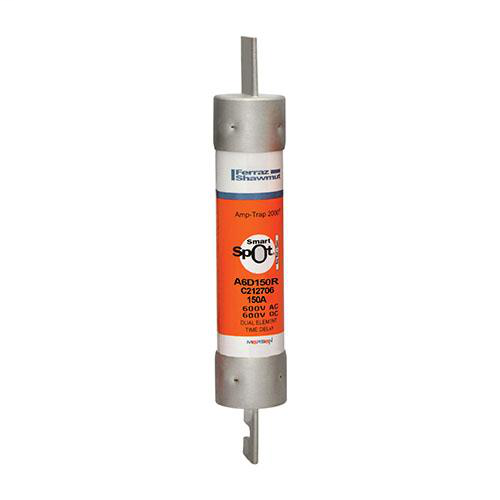

Ferraz Shawmut A6D150R 150 Amp 600 Volt Class RK1 Time Delay Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$104.12/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A6D150R
Crawford Part # 114034

Features

  • Solid state SmartSpot visual blown fuse indicator
  • Time-delay for motor starting and transformer inrush currents without nuisance opening
  • 600VAC & 600VDC dual rated
  • 300kA interrupting rating - self-certified, UL witnessed tests
  • Extremely current-limiting for low peak let-thru current
  • Recommended for Arc Flash energy reduction
  • Easy 2-to-1 selectivity for prevention of nuisance shut downs and “black outs”
  • Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
  • High-visibility orange label gives instant brand recognition
  • Reduced inventory by taking the place of class RK5, K, and H fuses
  • Metal-embossed date and catalog number for easier traceability and lasting identification
  • Fiberglass body provides dimensional stability in harsh industrial settings

Applications

  • Motors
  • Safety switches
  • Transformers
  • Branch circuit protection
  • Disconnects
  • Control panels
  • All general-purpose circuits

Specifications

  • Sell Pack Height: 10 in
  • Product Weight: 1.64 lb
  • Product Diameter: 1.81 in
  • Product Length: 9.63 in
  • Mounting: Clip
  • Ampere Rating: 150 A
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • ROHS Compliant: Yes
  • Sell Pack Weight: 1.72 lb
  • Indication System: Yes
  • Sell Pack Width: 1.94 in
  • Sell Pack Length: 1.94 in
  • Body/Insulating Material: PolyTube
  • Connection/Terminal Type: Blade
  • Sell Pack Quantity: 1 Each
  • Indication System Type: SmartSpot®
  • Speed/Characteristic: Time Delay
  • Fuse Class: Class RK1
  • Connection/Terminal Material: Tin-Plated Copper
  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 600 V

Approvals & Standards

  • UL listed to standard 248-12 File E2137
  • DC listed to UL standard 248
  • CSA certified to standard C22.2 No. 248.12
  • Approvals & Standards

Categories

Overview

UPC 78200199216
Product Description Amp-Trap 2000 SmartSpot time-delay A6D-R fuses provide IEC Type 2 "no damage" protection to existing mains, feeders, and branch circuits serving motor and non-motor loads. A6D-R fuses will open fast enough under extreme fault conditions for maximum short circuit protection to prevent damage to motor starters, switches, and other circuit components, yet also provide the time-delay needed for motor in-rush currents. A6D-R fuses can be used to replace older 600V Class H, K or RK5 fuses already installed in the field.
MDM Pkg GTiN 00782001992163
Length 9.63 in
Type North American, Time-Delay
Diameter 1.81 in
Terminal Type Blade
Applications Motors, Safety Switches, Transformers, Disconnects, Control Panels, All General Purpose Circuits
Mounting Type Clip
Weight 1.64 lb
Pkg Qty 1
Family Brand Name Ferraz Shawmut
Class RK-1
Insulation Material PolyTube
Tc Connection Blade
Amperage 150 Amp
Interrupt Rating 200 kA
Indicator SmartSpot
Terminal Material Tin-Plated Copper
Sub Brand Amp-Trap 2000, SmartSpot
Rated Voltage AC 600 V
Rated Voltage DC 600 V
Fuse Class Class RK1
Construction Fiberglass
