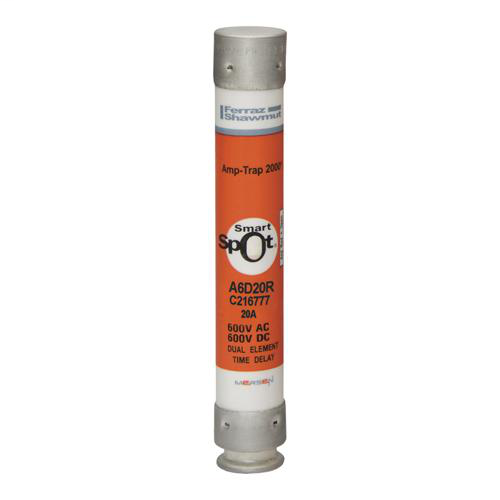

FRZ A6D20R 600V RK1 TD FUSE
Product image thumbnail 0
Product image thumbnail 1
$12.57/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A6D20R
Crawford Part # 114037
FRZ A6D20R 600V RK1 TD FUSE

Overview

UPC 78200199184
Product Description Amp-Trap 2000 SmartSpot time-delay A6D-R fuses provide IEC Type 2 "no damage" protection to existing mains, feeders, and branch circuits serving motor and non-motor loads. A6D-R fuses will open fast enough under extreme fault conditions for maximum short circuit protection to prevent damage to motor starters, switches, and other circuit components, yet also provide the time-delay needed for motor in-rush currents. A6D-R fuses can be used to replace older 600V Class H, K or RK5 fuses already installed in the field.
MDM Pkg GTiN 00782001991845
Length 5 in
Type Time-Delay
Diameter 0.81 in
Terminal Type Ferrule
Applications For Motors, Safety Switches, Transformers, Disconnects, Control Panels, All General Purpose Circuits
Mounting Type Clip
Weight 0.14 lb
Pkg Qty 10
Family Brand Name Ferraz Shawmut
Class RK-1
Insulation Material PolyTube
Construction Fiberglass
Tc Connection Ferrule
Amperage 20 Amp
Interrupt Rating 200 kA
Indicator SmartSpot
Terminal Material Tin-Plated Copper
Sub Brand Amp-Trap 2000
Rated Voltage AC 600 V
Rated Voltage DC 600 V
Fuse Class Class RK1
