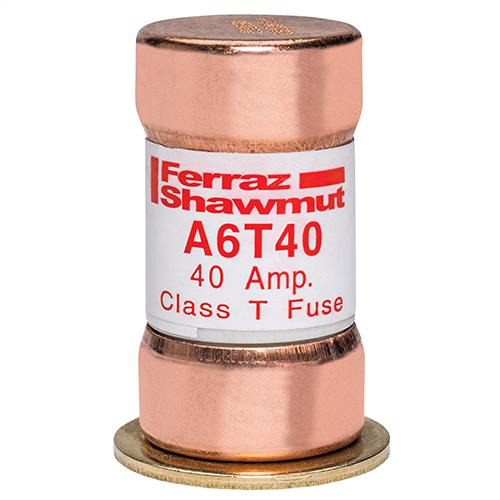

Ferraz Shawmut A6T40 40 Amp 600 Volt Class T Fast Acting Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$18.77/ea
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A6T40
Crawford Part # 114051

Features

  • Extremely current-limiting for low peak let-thru current
  • Unique dimensions prevent replacement by other fuse classes
  • Blade-stamped catalog numbers for permanent identification
  • Small physical size for greater design flexibility

Applications

  • Load centers
  • Panelboards
  • Switchboards
  • Circuit breakers
  • Metering centers

Approvals & Standards

  • UL listed to standard 248-15 File E2137
  • CSA certified to standard C22.2 no. 248.15
  • DC listed to UL standard 248

Specifications

  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 300 V
  • Ampere Rating: 40 A
  • Fuse Class: Class T
  • Speed/Characteristic: Fast-Acting
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • Connection/Terminal Material: Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 0.08 lb
  • Product Diameter: 0.81 in
  • Product Length: 1.57 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 0.84 lb
  • Sell Pack Width: 1.12 in
  • Sell Pack Length: 4.12 in
  • Sell Pack Height: 2 in

Overview

UPC 78200189108

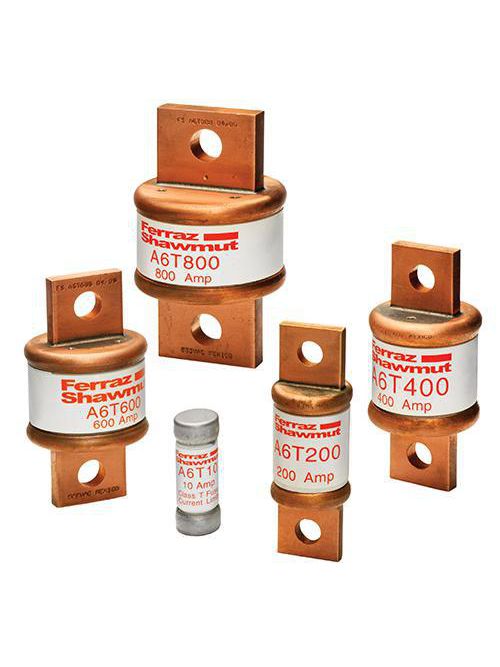

Product Description Fast-acting A6T Class T fuses combine two highly desirable features - high current-limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.
MDM Pkg GTiN 00782001891084
Length 1.57 in
Type North American Power Fuses
Diameter 0.81 in
Terminal Type Ferrule
Applications For Load Centers, Panelboards, Switchboards, Circuit Breakers, Metering Centers
Mounting Type Clip
Weight 0.08 lb
Pkg Qty 10
Family Brand Name Ferraz Shawmut
Class T
Insulation Material GMG
Tc Connection Ferrule
Amperage 40 Amp
Interrupt Rating 200 kA
Terminal Material Copper
Rated Voltage AC 600 V
Rated Voltage DC 300 V
Fuse Class Class T
Voltage 600 VAC
