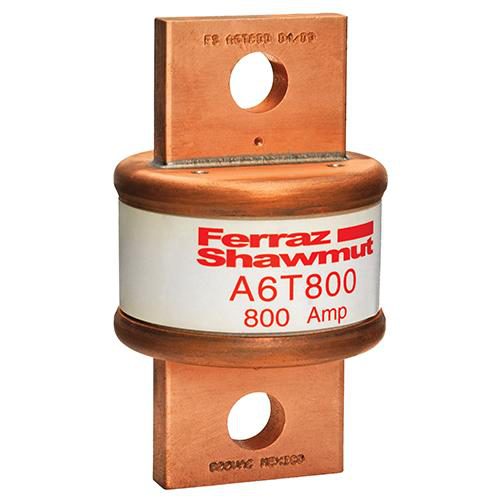

Ferraz Shawmut A6T800 800 Amp 600 Volt Class T Fast Acting Fuse
$241.23/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A6T800
Crawford Part # 114054

Features

  • Extremely current-limiting for low peak let-thru current
  • Unique dimensions prevent replacement by other fuse classes
  • Blade-stamped catalog numbers for permanent identification
  • Small physical size for greater design flexibility

Applications

  • Load centers
  • Panelboards
  • Switchboards
  • Circuit breakers
  • Metering centers

Specifications

  • Sell Pack Height: 4.94 in
  • Product Weight: 1.3 lb
  • Product Diameter: 2.5 in
  • Product Length: 4.33 in
  • Mounting: Bolted
  • Ampere Rating: 800 A
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • Sell Pack Weight: 1.37 lb
  • Sell Pack Width: 2.56 in
  • Sell Pack Length: 2.81 in
  • Body/Insulating Material: GMG
  • Connection/Terminal Type: Blade
  • Sell Pack Quantity: 1 Each
  • Speed/Characteristic: Fast-Acting
  • Fuse Class: Class T
  • Connection/Terminal Material: Copper
  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 300 V

Approvals & Standards

  • UL listed to standard 248-15 File E2137
  • CSA certified to standard C22.2 no. 248.15
  • DC listed to UL standard 248
  • Approvals & Standards

Overview

UPC 78200189158
Product Description Fast-acting A6T Class T fuses combine two highly desirable features - high current-limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.
MDM Pkg GTiN 00782001891589
Length 4.33 in
Type North American Power Fuses
Diameter 2.5 in
Terminal Type Blade
Applications Load centers Panelboards Switchboards Circuit Breakers Metering Centers
Mounting Type Bolted
Weight 1.3 lb
Pkg Qty 1
Family Brand Name Ferraz Shawmut
Class T
Insulation Material GMG
Tc Connection Blades
Amperage 800 Amp
Interrupt Rating 200 kA
Terminal Material Copper
Rated Voltage AC 600 V
Rated Voltage DC 300 V
Fuse Class Class T
