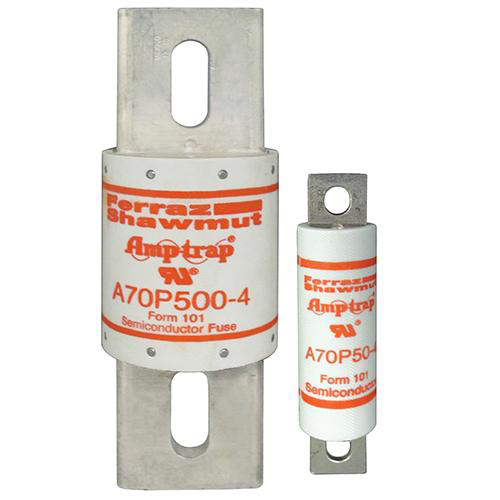

Ferraz Shawmut A70P500-4 60.5 x 180 mm 500 Amp 700 Volt Semiconductor Protection Fuse
$317.99/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # A70P500-4
Crawford Part # 114074

Features

  • Low I2t minimizes damage to protected components on short circuit
  • Controlled arc voltage reduces stress to circuit components during fuse clearing
  • Choice of mounting types helps in equipment design

Applications

  • Protection of 700V or less DC drives, UPS, inverters, reduced voltage starters, etc.

Specifications

  • Sell Pack Height: 2.38 in
  • Product Weight: 1.25 lb
  • Product Diameter: 2.38 in
  • Product Length: 7.09 in
  • Mounting: Bolted
  • Ampere Rating: 500 A
  • AC Max I.R./Breaking Capacity: I1: 65 kA
  • ROHS Compliant: Yes
  • Sell Pack Weight: 1.31 lb
  • Sell Pack Width: 2.5 in
  • Sell Pack Length: 8.75 in
  • Body/Insulating Material: GMG
  • Connection/Terminal Type: Bolted
  • Sell Pack Quantity: 1 Each
  • Speed/Characteristic: High Speed
  • Connection/Terminal Material: Silver-Plated Copper
  • Rated voltage AC UL: 700 V
  • Rated voltage DC UL: 650 V

Approvals & Standards

  • UL recognized component UL File E60314
  • AC: guide no. JFHR2 (10-1000A)
  • DC: tested to UL standard 198L parameters (10-800A)
  • Approvals & Standards

Categories

Overview

UPC 78200194738
Product Description A70P Amp-Trap Form 101 high speed fuses were developed for higher voltage AC and DC drives, UPS systems, reduced voltage motor starters and similar applications where lower l2t and superior reliability are needed. A70P is a very popular fuse, available in a wide range of ratings. Typically used for replacement.
MDM Pkg GTiN 00782001947385
Length 7.09 in
Type North American Round Style, Blade, General Purpose
Diameter 2.38 in
Terminal Type Bolted
Applications For Protection of 700 V or less DC Drives, UPS, Inverters, Reduced Voltage Starters
Mounting Type Bolt
Weight 1.25 lb
Pkg Qty 1
Family Brand Name Ferraz Shawmut
Insulation Material GMG
Tc Connection Bolted
Amperage 500 Amp
Terminal Material Silver-Plated Copper
Rated Voltage AC 700 V
Rated Voltage DC 650 V
