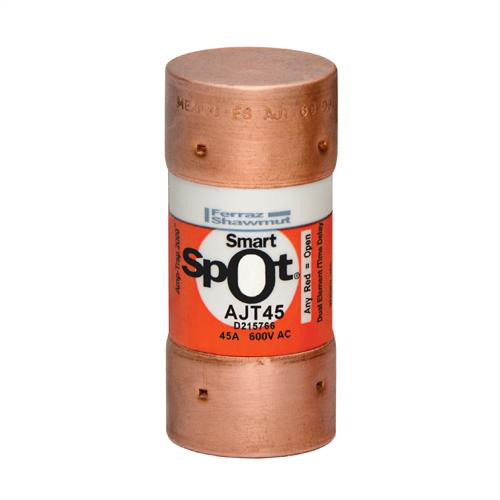

FRZ AJT45 600V CLASS J TD FUSE
Product image thumbnail 0
Product image thumbnail 1
$20.07/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # AJT45
Crawford Part # 114092
FRZ AJT45 600V CLASS J TD FUSE

Overview

UPC 78200196234
Product Description Amp-Trap 2000 AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJTs time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
MDM Pkg GTiN 00782001962340
Length 2.38 in
Type Time-Delay
Diameter 1.06 in
Terminal Type Ferrule
Applications For Motor Circuits, Mains, Feeders, Branch Circuits, Lighting, Heaters, Transformers, Control Panels, Circuit Breaker Back-up, Bus Duct, Load Centers
Mounting Type Clip
Weight 0.2 lb
Frequency 60 Hz
Pkg Qty 10
Family Brand Name Ferraz Shawmut
Class J
Insulation Material GMG
Construction Fiberglass
Tc Connection Ferrule
Amperage 45 Amp
Blade Dimensions 27 x 60 mm
Interrupt Rating 200 kA
Indicator SmartSpot
Terminal Material Tin-Plated Copper
Sub Brand Amp-Trap 2000
Rated Voltage AC 600 V
Rated Voltage DC 500 V
Fuse Class Class J
