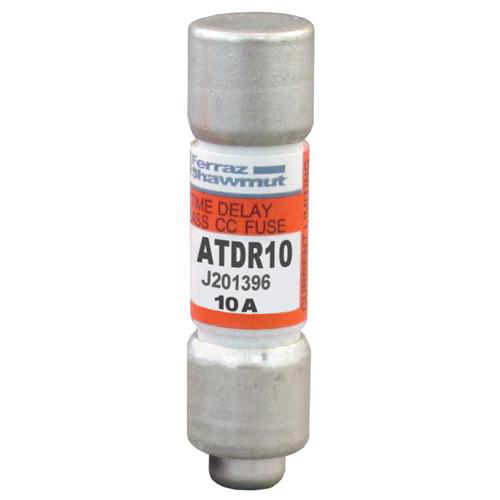

Ferraz Shawmut ATDR10 10 Amp 600 Volt Class CC Time Delay Fuse

$5.33/ea

In Stock | 73 available at 2 locations

Adding...

Already a Customer? Log in to view your pricing

Features

Time-delay for motor starting inrush currents without nuisance opening
Highly current-limiting for low peak let-thru current
Improved cycling ability for frequent motor starts/stops without nuisance fuse opening
Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
High-visibility orange label ensures instant brand recognition, simplifies replacement
Metal-embossed date and catalog number for traceability and lasting identification
Fiberglass body provides dimensional stability in harsh industrial settings
High-grade silica filler ensures fast arc quenching and optimum current-limitation

UPC	78200190107
Family Brand Name	Ferraz Shawmut
Product Description	Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the best time-delay characteristics in their class with excellent cycling ability for small motor loads.
MDM Pkg GTiN	00782001901073
Length	1.5 in
Type	Time-Delay
Diameter	0.41 in
Terminal Type	Ferrule
Applications	For Small Motors, Contactors, Lighting, Heaters, General Loads
Mounting Type	Clip
Weight	0.02 lb
Pkg Qty	10
Class	CC
Insulation Material	GMG
Construction	Fiberglass
Tc Connection	Ferrule
Amperage	10 Amp
Blade Dimensions	10 x 38 mm
Interrupt Rating	200 kA
Terminal Material	Tin-Plated Copper
Sub Brand	Amp-Trap 2000
Rated Voltage AC	600 V
Rated Voltage DC	300 V
Fuse Class	Class CC
Voltage	600 VAC
