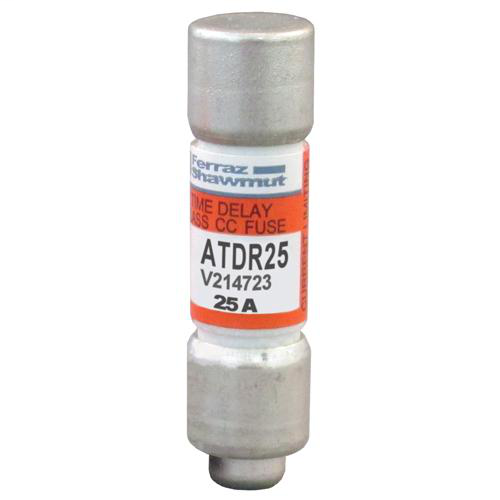

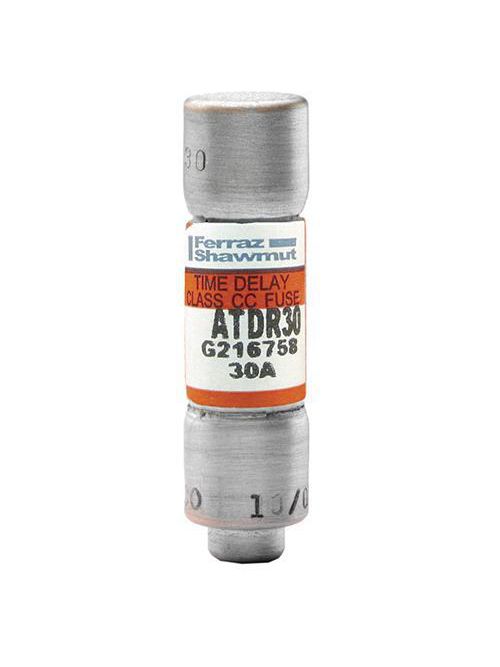

Ferraz Shawmut ATDR25 25 Amp 600 Volt Class CC Time Delay Fuse
Product image thumbnail 0
Product image thumbnail 1
$5.33/ea
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # ATDR25
Crawford Part # 114102

Features

  • Time-delay for motor starting inrush currents without nuisance opening
  • Highly current-limiting for low peak let-thru current
  • Improved cycling ability for frequent motor starts/stops without nuisance fuse opening
  • Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
  • High-visibility orange label ensures instant brand recognition, simplifies replacement
  • Metal-embossed date and catalog number for traceability and lasting identification
  • Fiberglass body provides dimensional stability in harsh industrial settings
  • High-grade silica filler ensures fast arc quenching and optimum current-limitation

Applications

  • Small motors
  • Contactors
  • Lighting, heating & general loads
  • Branch circuit protection

Approvals & Standards

  • UL listed to standard 248-4 File E2137
  • CSA certified to standard C22.2 No. 248.4
  • DC listed to UL standard 248

Specifications

  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 300 V
  • Ampere Rating: 25 A
  • Fuse Class: Class CC
  • Speed/Characteristic: Time Delay
  • Mounting: Clip
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • Connection/Terminal Material: Tin-Plated Copper
  • Connection/Terminal Type: Ferrule
  • Body/Insulating Material: GMG

Product Dimensions

  • Product Weight: 0.02 lb
  • Product Diameter: 0.41 in
  • Product Length: 1.5 in

Packaging Dimensions

  • Sell Pack Quantity: 10 Each
  • Sell Pack Weight: 0.21 lb
  • Sell Pack Width: 0.88 in
  • Sell Pack Length: 1.62 in
  • Sell Pack Height: 2.12 in

Overview

UPC 78200190869
Family Brand Name Ferraz Shawmut
Product Description Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the best time-delay characteristics in their class with excellent cycling ability for small motor loads.
MDM Pkg GTiN 00782001908690
Length 1.5 in
Type Time-Delay
Diameter 0.41 in
Terminal Type Ferrule
Applications For Small Motors, Contactors, Lighting, Heaters, General Loads
Mounting Type Clip
Weight 0.02 lb
Pkg Qty 10
Class CC
Insulation Material GMG
Construction Fiberglass
Tc Connection Ferrule
Amperage 25 Amp
Blade Dimensions 10 x 38 mm
Interrupt Rating 200 kA
Terminal Material Tin-Plated Copper
Sub Brand Amp-Trap 2000
Rated Voltage AC 600 V
Rated Voltage DC 300 V
Fuse Class Class CC
Voltage 600 VAC
