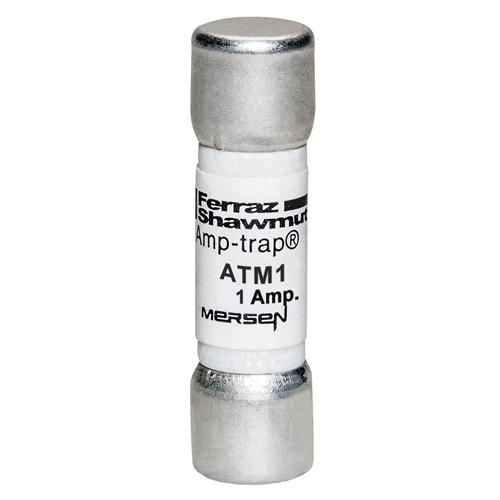

Ferraz Shawmut ATM1 1 Amp 600 Volt Fast Acting Midget Fuse
$8.59/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # ATM1
Crawford Part # 114103

Features

  • For supplemental protection of small motors and transformers
  • Extended ratings for special protection of capacitors and circuits with high inrush currents
  • 600VDC ratings for a wide variety of applications including photovoltaic and solar applications.
  • Can be used with UltraSafeā„¢ fuse holders
  • 1 1/2" x 13/32" (10mm x 38mm) dimensions

Applications

  • Supplemental protection of of circuits up to 600VAC and 600VDC with 100kA I.R.

Specifications

  • Sell Pack Height: 2.12 in
  • Product Weight: 0.012 lb
  • Product Diameter: 0.41 in
  • Product Length: 1.5 in
  • Mounting: Clip
  • Ampere Rating: 1 A
  • AC Max I.R./Breaking Capacity: I1: 100 kA
  • ROHS Compliant: Yes
  • Sell Pack Weight: 0.13 lb
  • Sell Pack Width: 0.88 in
  • Sell Pack Length: 1.62 in
  • Body/Insulating Material: GMG
  • Connection/Terminal Type: Ferrule
  • Sell Pack Quantity: 10 Each
  • Speed/Characteristic: Fast-Acting
  • Fuse Class: Midget
  • Connection/Terminal Material: Tin-Plated Copper
  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 600 V

Approvals & Standards

  • UL listed to standard 248-14 (1/10 to 30A) File E33925
  • DC Listed to UL Standard 248-14 (1/10 to 30A)
  • CSA Certified to Standard C22.2 No. 248.14 (1/10 to 30A)
  • Approvals & Standards

Overview

UPC 78200190081
Product Description Amp-Trap midget fast-acting ATM fuses are rated 600 volts AC and DC, with a 100kA interrupting rating. These ratings give the ATM a wide range of applications not covered by other midget fuses. In addition, ratings of 30/35, 30/40 and 30/50 amperes are offered for specific applications such as capacitor protection. These ATM fuses must still be considered 30A fuses because of their dimensions, but are able to withstand much higher inrush currents and tougher duty cycles. (Not for Branch Circuit Protection).
MDM Pkg GTiN 00782001900816
Length 1.5 in
Type Supplemental Protection
Diameter 0.41 in
Terminal Type Ferrule
Applications For Supplemental Protection of a Wide Variety of Circuits up to 600 VAC and 600 VDC with 100 kA I.R
Mounting Type Clip
Weight 0.012 lb
Pkg Qty 10
Family Brand Name Ferraz Shawmut
Class M
Insulation Material GMG
Tc Connection Ferrule
Amperage 1 Amp
Blade Dimensions 10 x 38 mm
Interrupt Rating 100 kA
Terminal Material Tin-Plated Copper
Rated Voltage AC 600 V
Rated Voltage DC 600 V
Fuse Class Midget
