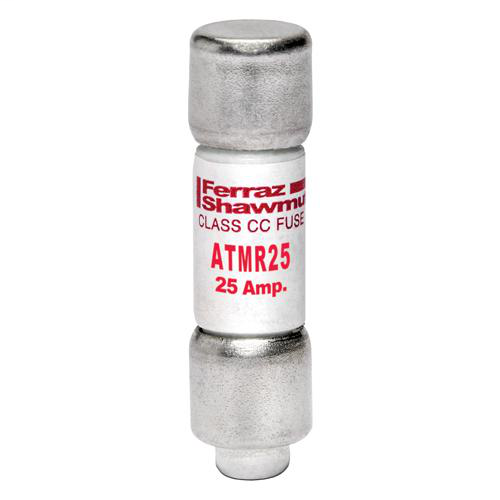

Ferraz Shawmut ATMR25 25 Amp 600 Volt Class CC Fast Acting Fuse
$14.07/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # ATMR25
Crawford Part # 114114

Features

  • Rejection-style design prevents replacement errors when used with recommended fuse blocks
  • Versatile design for individual component and branch circuit protection

Applications

  • Control circuits
  • Lighting
  • General loads
  • Branch circuit protection

Specifications

  • Sell Pack Height: 2.12 in
  • Product Weight: 0.02 lb
  • Product Diameter: 0.41 in
  • Product Length: 1.5 in
  • Mounting: Clip
  • Ampere Rating: 25 A
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • ROHS Compliant: Yes
  • Sell Pack Weight: 0.21 lb
  • Sell Pack Width: 0.88 in
  • Sell Pack Length: 1.62 in
  • Body/Insulating Material: GMG
  • Connection/Terminal Type: Ferrule
  • Sell Pack Quantity: 10 Each
  • Speed/Characteristic: Fast-Acting
  • Fuse Class: Class CC
  • Connection/Terminal Material: Tin-Plated Copper
  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 600 V

Approvals & Standards

  • UL Listed to Standard 248-4 File E2137
  • CSA Certified to Standard C22.2 No. 248.4
  • DC listed to UL Standard 248
  • Approvals & Standards

Categories

Overview

UPC 78200190483
Product Description Amp-Trap ATMR fast-acting fuses are the smallest dimension 600V fuses suitable for branch-circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR's rejection dimensions prevent substitution by lesser rated fuses. These fast-acting fuses give current-limiting protection to general circuits.
MDM Pkg GTiN 00782001904838
Length 1.5 in
Type North American Power Fuses
Diameter 0.41 in
Terminal Type Ferrule
Applications For Control Circuits, Lighting, General Loads
Mounting Type Clip
Weight 0.02 lb
Pkg Qty 10
Family Brand Name Ferraz Shawmut
Class CC
Insulation Material GMG
Construction Fiberglass
Tc Connection Ferrule
Amperage 25 Amp
Blade Dimensions 10 x 38 mm
Interrupt Rating 200 kA
Terminal Material Tin-Plated Copper
Rated Voltage AC 600 V
Rated Voltage DC 600 V
Fuse Class Class CC
Voltage null
