FRZ ATMR8 600V SPCL PURP FUSE
$13.47/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # ATMR8
Crawford Part # 114116

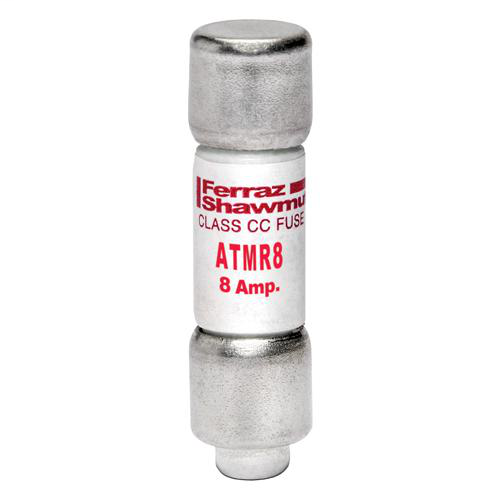

FRZ ATMR8 600V SPCL PURP FUSE

Overview

UPC 78200190451
Product Description Amp-Trap ATMR fast-acting fuses are the smallest dimension 600V fuses suitable for branch-circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR's rejection dimensions prevent substitution by lesser rated fuses. These fast-acting fuses give current-limiting protection to general circuits.
MDM Pkg GTiN 00782001904517
Length 1.5 in
Type North American Power Fuses
Diameter 0.41 in
Terminal Type Ferrule
Applications For Control Circuits, Lighting, General Loads
Mounting Type Clip
Weight 0.02 lb
Pkg Qty 10
Family Brand Name Ferraz Shawmut
Class CC
Insulation Material GMG
Construction Fiberglass
Tc Connection Ferrule
Amperage 8 Amp
Blade Dimensions 10 x 38 mm
Interrupt Rating 200 kA
Terminal Material Tin-Plated Copper
Rated Voltage AC 600 V
Rated Voltage DC 600 V
Fuse Class Class CC
