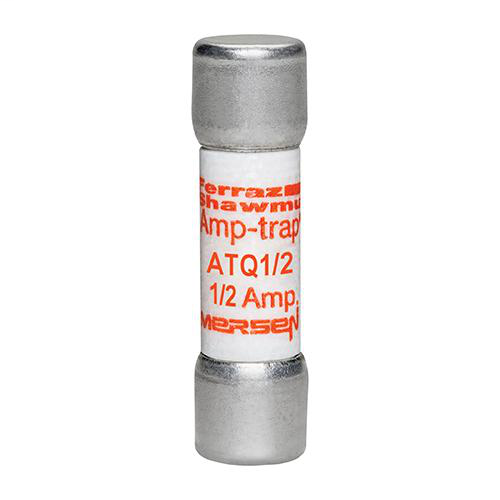

Ferraz Shawmut ATQ1/2 1/2 Amp 500 Volt Glass Melamine Laminated Time Delay Midget Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$10.59/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # ATQ1/2
Crawford Part # 114120

Features

  • Numerous ratings for a wide variety of applications up to 500VAC
  • Time-delay (12 seconds at 200 percent rating) for circuits with high inrush current
  • Can be used with UltraSafeā„¢ Fuse holders
  • 1 1/2" x 13/32" (10 mm x 38 mm) dimensions

Applications

  • Supplemental protection of lighting, solenoid, motor and transformer circuits

Specifications

  • Sell Pack Height: 2.12 in
  • Sell Pack Width: 0.88 in
  • Product Weight: 0.012 lb
  • Body/Insulating Material: GMG
  • Speed/Characteristic: Time Delay
  • Ampere Rating: 0.5 A
  • Sell Pack Weight: 0.13 lb
  • Fuse Class: Midget
  • Connection/Terminal Material: Tin-Plated Copper
  • Rated voltage AC UL: 500 V
  • Product Diameter: 0.41 in
  • Mounting: Clip
  • Sell Pack Quantity: 10 Each
  • Connection/Terminal Type: Ferrule
  • Product Length: 1.5 in
  • AC Max I.R./Breaking Capacity: I1: 10 kA
  • Sell Pack Length: 1.62 in

Approvals & Standards

  • UL listed to standard 248-14 File E33925
  • CSA Certified to Standard C22.2 No. 248.14
  • Approvals & Standards

Overview

UPC 78200190266
Product Description Amp-Trap ATQ midget time-delay fuses are rated 500VAC with 42 ampere ratings from 1/10 to 30A. They are an excellent choice for supplemental protection of circuits where the available short circuit current does not exceed 10,000A. (Not for Branch Circuit Protection)
MDM Pkg GTiN 00782001902667
Length 1.5 in
Type Time-Delay
Diameter 0.41 in
Terminal Type Ferrule
Applications For Supplemental Protection of Lighting, Solenoid, Motor and Transformer Circuits
Mounting Type Clip
Weight 0.012 lb
Pkg Qty 10
Family Brand Name Ferraz Shawmut
Class M
Insulation Material GMG
Tc Connection Ferrule
Amperage 0.5 Amp
Blade Dimensions 10 x 38 mm
Interrupt Rating 10 kA
Terminal Material Tin-Plated Copper
Rated Voltage AC 500 V
Fuse Class Midget
