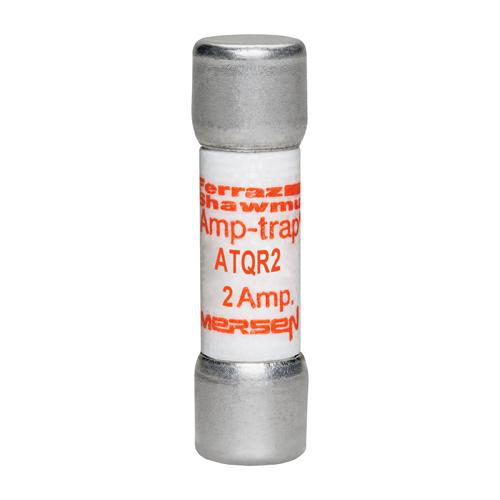

Ferraz Shawmut ATQR2 2 Amp 600 Volt Glass Melamine Laminated Class CC Rejection Time Delay Fuse

$5.33/ea

In Stock | 4 available at 1 location

Adding...

Already a Customer? Log in to view your pricing

Features

Time-delay for control transformer inrush loads without nuisance opening
Highly current-limiting for low peak let-thru current
Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
High visibility orange label ensures instant brand recognition, and simplifies replacement
Metal-embossed date and catalog number for traceability and lasting identification
Fiberglass body provides dimensional stability in harsh industrial settings
High-grade silica filler ensures fast arc quenching and high current limitation

UPC	78200190644
Product Description	ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems
MDM Pkg GTiN	00782001906443
Length	1.5 in
Type	Time-Delay
Diameter	0.41 in
Terminal Type	Ferrule
Applications	For Control Transformers, Solenoids, Inductive Loads, Lighting, Heaters, General Purpose Loads
Mounting Type	Clip
Weight	0.02 lb
Pkg Qty	10
Family Brand Name	Ferraz Shawmut
Class	CC
Insulation Material	GMG
Construction	Fiberglass
Tc Connection	Ferrule
Amperage	2 Amp
Blade Dimensions	10 x 38 mm
Interrupt Rating	200 kA
Terminal Material	Tin-Plated Copper
Sub Brand	Amp-Trap 2000
Rated Voltage AC	600 V
Rated Voltage DC	300 V
Fuse Class	Class CC
Voltage	null
