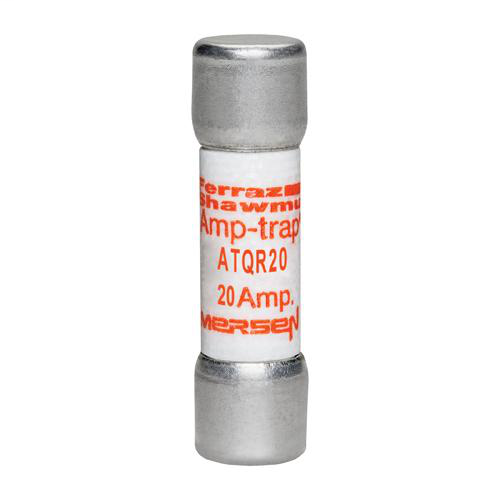

Ferraz Shawmut ATQR20 20 Amp 600 Volt Glass Melamine Laminated Class CC Rejection Time Delay Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$5.33/ea
In Stock | 19 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # ATQR20
Crawford Part # 114142

Features

  • Time-delay for control transformer inrush loads without nuisance opening
  • Highly current-limiting for low peak let-thru current
  • Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
  • High visibility orange label ensures instant brand recognition, and simplifies replacement
  • Metal-embossed date and catalog number for traceability and lasting identification
  • Fiberglass body provides dimensional stability in harsh industrial settings
  • High-grade silica filler ensures fast arc quenching and high current limitation

Applications

  • Control transformers
  • Solenoids
  • Inductive loads
  • Lighting, heating & general-purpose loads

Specifications

  • Sell Pack Height: 2.12 in
  • Product Weight: 0.02 lb
  • Product Diameter: 0.41 in
  • Product Length: 1.5 in
  • Mounting: Clip
  • Ampere Rating: 20 A
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • ROHS Compliant: Yes
  • Sell Pack Weight: 0.21 lb
  • Sell Pack Width: 0.88 in
  • Sell Pack Length: 1.62 in
  • Body/Insulating Material: GMG
  • Connection/Terminal Type: Ferrule
  • Sell Pack Quantity: 10 Each
  • Speed/Characteristic: Time Delay
  • Fuse Class: Class CC
  • Connection/Terminal Material: Tin-Plated Copper
  • Rated voltage AC UL: 600 V
  • Rated voltage DC UL: 300 V

Approvals & Standards

  • UL listed to standard 248-4 File E2137
  • DC listed to UL standard 248
  • CSA certified to standard C22.2 No. 248.4
  • Approvals & Standards

Categories

Overview

UPC 78200190470
Product Description ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems
MDM Pkg GTiN 00782001904708
Length 1.5 in
Type Time-Delay
Diameter 0.41 in
Terminal Type Ferrule
Applications For Control Transformers, Solenoids, Inductive Loads, Lighting, Heaters, General Purpose Loads
Mounting Type Clip
Weight 0.02 lb
Pkg Qty 10
Family Brand Name Ferraz Shawmut
Class CC
Insulation Material GMG
Construction Fiberglass
Tc Connection Ferrule
Amperage 20 Amp
Blade Dimensions 10 x 38 mm
Interrupt Rating 200 kA
Terminal Material Tin-Plated Copper
Sub Brand Amp-Trap 2000
Rated Voltage AC 600 V
Rated Voltage DC 300 V
Fuse Class Class CC
